Unity Catalog Quickstart Guide

Quickstart

Section titled “Quickstart”

This quickstart shows how to run Unity Catalog on localhost which is great for experimentation and testing.

How to start the Unity Catalog server

Section titled “How to start the Unity Catalog server”

Start by cloning the open source Unity Catalog GitHub repository:

Terminal window
git clone git@github.com:unitycatalog/unitycatalog.git

To run Unity Catalog, you need Java 17 installed on your machine. You can always run the java --version command to verify that you have the right version of Java installed such as the following example output.

Terminal window
% java --version
openjdk 17.0.12 2024-07-16
OpenJDK Runtime Environment Homebrew (build 17.0.12+0)
OpenJDK 64-Bit Server VM Homebrew (build 17.0.12+0, mixed mode, sharing)

Change into the unitycatalog directory and run bin/start-uc-server to instantiate the server. Here is what you should see:

Terminal window
###################################################################
#  _    _       _ _            _____      _        _              #
# | |  | |     (_) |          / ____|    | |      | |             #
# | |  | |_ __  _| |_ _   _  | |     __ _| |_ __ _| | ___   __ _  #
# | |  | | '_ \| | __| | | | | |    / _` | __/ _` | |/ _ \ / _` | #
# | |__| | | | | | |_| |_| | | |___| (_| | || (_| | | (_) | (_| | #
#  \____/|_| |_|_|\__|\__, |  \_____\__,_|\__\__,_|_|\___/ \__, | #
#                      __/ |                                __/ | #
#                     |___/               v0.2.0           |___/  #
###################################################################

Well, that was pretty easy!

Verify Unity Catalog server is running

Section titled “Verify Unity Catalog server is running”

Let’s create a new Terminal window and verify that the Unity Catalog server is running.

Unity Catalog has a few built-in tables that are great for quick experimentation. Let’s look at all the tables that have a catalog name of “unity” and a schema name of “default” with the Unity Catalog CLI.

Terminal window
bin/uc table list --catalog unity --schema default
Terminal window
┌─────────────────┬──────────────┬─────┬────────────────────────────────────┐
│      NAME       │ CATALOG_NAME │ ... │              TABLE_ID              │
├─────────────────┼──────────────┼─────┼────────────────────────────────────┤
│marksheet        │unity         │ ... │c389adfa-5c8f-497b-8f70-26c2cca4976d│
├─────────────────┼──────────────┼─────┼────────────────────────────────────┤
│marksheet_uniform│unity         │ ... │9a73eb46-adf0-4457-9bd8-9ab491865e0d│
├─────────────────┼──────────────┼─────┼────────────────────────────────────┤
│numbers          │unity         │ ... │32025924-be53-4d67-ac39-501a86046c01│
├─────────────────┼──────────────┼─────┼────────────────────────────────────┤
│user_countries   │unity         │ ... │26ed93b5-9a18-4726-8ae8-c89dfcfea069│
└─────────────────┴──────────────┴─────┴────────────────────────────────────┘

Let’s read the content of the unity.default.numbers table with the Unity Catalog CLI.

Terminal window
bin/uc table read --full_name unity.default.numbers
Terminal window
┌───────────────────┬────────────────────┐
│as_int(integer)    │as_double(double)   │
├───────────────────┼────────────────────┤
│564                │188.75535598441473  │
├───────────────────┼────────────────────┤
│755                │883.6105633023361   │
├───────────────────┼────────────────────┤
│...                │...                 │
├───────────────────┼────────────────────┤
│958                │509.3712727285101   │
└───────────────────┴────────────────────┘

We can see it’s straightforward to make queries with the Unity Catalog CLI.

Unity Catalog structure

Section titled “Unity Catalog structure”

Unity Catalog stores all assets in a 3-level namespace:

  1. catalog
  2. schema
  3. assets like tables, volumes, functions, etc.

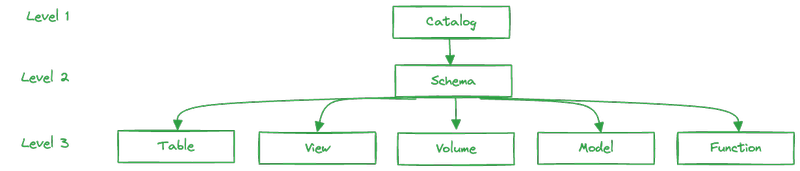

Unity Catalog 3 Level Structure

Here’s an example Unity Catalog instance:

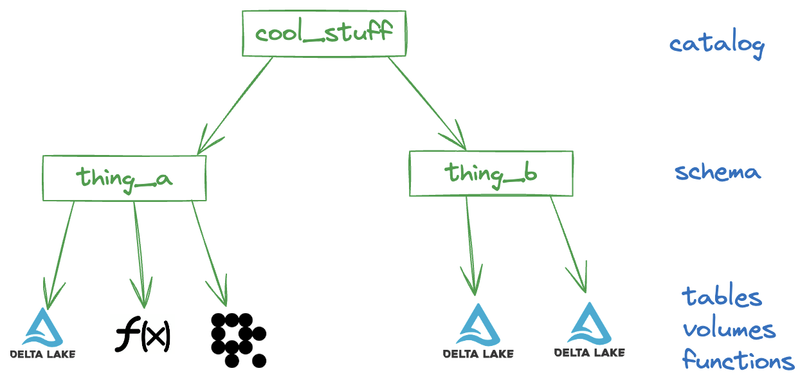

Unity Catalog Example Catalog

This Unity Catalog instance contains a single catalog named cool_stuff.

The cool_stuff catalog contains two schema: thing_a and thing_b.

thing_a contains a Delta table, a function, and a Lance volume. thing_b contains two Delta tables.

Unity Catalog provides a nice organizational structure for various datasets.

List the catalogs and schemas with the CLI

Section titled “List the catalogs and schemas with the CLI”

The Unity Catalog server is pre-populated with a few sample catalogs, schemas, Delta tables, etc.

Let’s start by listing the catalogs using the CLI.

Terminal window
bin/uc catalog list

You should see a catalog named unity. Let’s see what’s in this unity catalog (pun intended).

Terminal window
bin/uc schema list --catalog unity
Terminal window
┌───────┬────────────┬───┬────────────────────────────────────┐
│ NAME  │CATALOG_NAME│...│             SCHEMA_ID              │
├───────┼────────────┼───┼────────────────────────────────────┤
│default│unity       │...│b08dfd57-a939-46cf-b102-9b906b884fae│
└───────┴────────────┴───┴────────────────────────────────────┘

You should see that there is a schema named default. To go deeper into the contents of this schema, you have to list different asset types separately. Let’s start with tables.

Operate on Delta tables with the CLI

Section titled “Operate on Delta tables with the CLI”

Let’s list the tables.

Terminal window
bin/uc table list --catalog unity --schema default
Terminal window
┌─────────────────┬────────────┬────┬────────────────────────────────────┐
│      NAME       │CATALOG_NAME│....│              TABLE_ID              │
├─────────────────┼────────────┼────┼────────────────────────────────────┤
│marksheet        │unity       │....│c389adfa-5c8f-497b-8f70-26c2cca4976d│
├─────────────────┼────────────┼────┼────────────────────────────────────┤
│marksheet_uniform│unity       │....│9a73eb46-adf0-4457-9bd8-9ab491865e0d│
├─────────────────┼────────────┼────┼────────────────────────────────────┤
│numbers          │unity       │....│32025924-be53-4d67-ac39-501a86046c01│
├─────────────────┼────────────┼────┼────────────────────────────────────┤
│user_countries   │unity       │....│26ed93b5-9a18-4726-8ae8-c89dfcfea069│
└─────────────────┴────────────┴────┴────────────────────────────────────┘

You should see a few tables. Some details are truncated because of the nested nature of the data.

Next, let’s get the metadata of one those tables.

Terminal window
bin/uc table get --full_name unity.default.numbers
Terminal window
┌──────────────────────┬───────────────────────────────────────────┐
│         KEY          │                  VALUE                    │
├──────────────────────┼───────────────────────────────────────────┤
│NAME                  │numbers                                    │
├──────────────────────┼───────────────────────────────────────────┤
│CATALOG_NAME          │unity                                      │
├──────────────────────┼───────────────────────────────────────────┤
│SCHEMA_NAME           │default                                    │
├──────────────────────┼───────────────────────────────────────────┤
│TABLE_TYPE            │EXTERNAL                                   │
├──────────────────────┼───────────────────────────────────────────┤
│DATA_SOURCE_FORMAT    │DELTA                                      │
├──────────────────────┼───────────────────────────────────────────┤
│COLUMNS               │{"name":"as_int","type_text":"int","type_js│
│                      │NT","type_precision":0,"type_scale":0,"type│
│                      │{"name":"as_double","type_text":"double","t│
│                      │name":"DOUBLE","type_precision":0,"type_sca│
│                      │column","nullable":false,"partition_index":│
├──────────────────────┼───────────────────────────────────────────┤
│...                   │...                                        │
├──────────────────────┼───────────────────────────────────────────┤
│TABLE_ID              │32025924-be53-4d67-ac39-501a86046c01       │
└──────────────────────┴───────────────────────────────────────────┘

You can see this is a Delta table from the DATA_SOURCE_FORMAT metadata.

Here’s how to print a snippet of a Delta table (powered by the Delta Kernel Java project).

Let’s try creating a new table.

Terminal window
bin/uc table create --full_name unity.default.mytable --columns 'col1 int, col2 double' --storage_location /tmp/uc/my_table
Terminal window
┌──────────────────────┬───────────────────────────────────────────┐
│         KEY          │                  VALUE                    │
├──────────────────────┼───────────────────────────────────────────┤
│NAME                  │mytable                                    │
├──────────────────────┼───────────────────────────────────────────┤
│CATALOG_NAME          │unity                                      │
├──────────────────────┼───────────────────────────────────────────┤
│SCHEMA_NAME           │default                                    │
├──────────────────────┼───────────────────────────────────────────┤
│TABLE_TYPE            │EXTERNAL                                   │
├──────────────────────┼───────────────────────────────────────────┤
│DATA_SOURCE_FORMAT    │DELTA                                      │
├──────────────────────┼───────────────────────────────────────────┤
│COLUMNS               │{"name":"as_int","type_text":"int","type_js│
│                      │NT","type_precision":0,"type_scale":0,"type│
│                      │{"name":"as_double","type_text":"double","t│
│                      │name":"DOUBLE","type_precision":0,"type_sca│
│                      │column","nullable":false,"partition_index":│
├──────────────────────┼───────────────────────────────────────────┤
│...                   │...                                        │
├──────────────────────┼───────────────────────────────────────────┤
│TABLE_ID              │263a234a-7a29-44c8-8e41-8c46aa30650c       │
└──────────────────────┴───────────────────────────────────────────┘

If you list the tables (e.g., bin/uc table list --catalog unity --schema default) again, you should see this new table.

Next, append some randomly generated data to the table using write.

Terminal window
bin/uc table write --full_name unity.default.mytable

Read the table to confirm the random data was appended:

Terminal window
bin/uc table read --full_name unity.default.mytable
Terminal window
┌───────────────────┬────────────────────┐
│col1(integer)      │col2(double)        │
├───────────────────┼────────────────────┤
│358                │289.04381385477393  │
├───────────────────┼────────────────────┤
│571                │22.709993302915787  │
├───────────────────┼────────────────────┤
│...                │...                 │
├───────────────────┼────────────────────┤
│221                │917.8549104485671   │
└───────────────────┴────────────────────┘

Delete the table to clean up:

Terminal window
bin/uc table delete --full_name unity.default.mytable

Interact with the Unity Catalog UI

Section titled “Interact with the Unity Catalog UI”

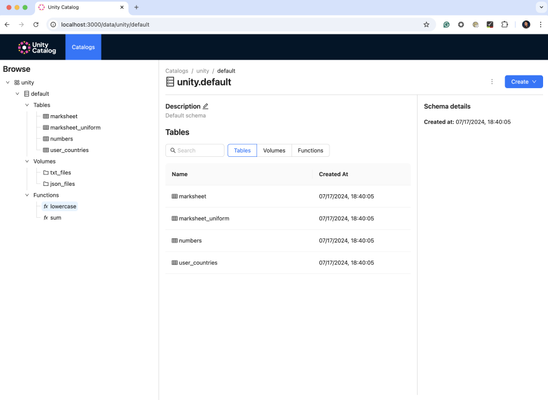

Unity Catalog UI

To use the Unity Catalog UI, start a new terminal and ensure you have already started the Unity Catalog server (e.g., ./bin/start-uc-server)

To start the UI locally, run the following commands to start yarn

Terminal window
cd /ui
yarn install
yarn start

Manage models in Unity Catalog using MLflow

Section titled “Manage models in Unity Catalog using MLflow”

Unity Catalog supports the management and governance of ML models as securable assets. Starting with MLflow 2.16.1, MLflow offers integrated support for using Unity Catalog as the backing resource for the MLflow model registry. What this means is that with the MLflow client, you will be able to interact directly with your Unity Catalog service for the creation and access of registered models.

Setup MLflow for usage with Unity Catalog

Section titled “Setup MLflow for usage with Unity Catalog”

In your desired development environment, install MLflow 2.16.1 or higher:

Terminal window
pip install mlflow

The installation of MLflow includes the MLflow CLI tool, so you can start a local MLflow server with UI by running the command below in your terminal:

Terminal window
mlflow ui

It will generate logs with the IP address, for example:

Terminal window
[2023-10-25 19:39:12 -0700] [50239] [INFO] Starting gunicorn 20.1.0
[2023-10-25 19:39:12 -0700] [50239] [INFO] Listening at: http://127.0.0.1:5000 (50239)

Next, from within a python script or shell, import MLflow and set the tracking URI and the registry URI.

import mlflow


mlflow.set_tracking_uri("http://127.0.0.1:5000")
mlflow.set_registry_uri("uc:http://127.0.0.1:8080")

At this point, your MLflow environment is ready for use with the newly started MLflow tracking server and the Unity Catalog server acting as your model registry.

Train your model and register it into Unity Catalog

Section titled “Train your model and register it into Unity Catalog”

You can quickly train a test model and validate that the MLflow/Unity catalog integration is fully working.

import os
from sklearn import datasets
from sklearn.ensemble import RandomForestClassifier
from sklearn.model_selection import train_test_split
import pandas as pd


X, y = datasets.load_iris(return_X_y=True, as_frame=True)
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)


with mlflow.start_run():
  # Train a sklearn model on the iris dataset
  clf = RandomForestClassifier(max_depth=7)
  clf.fit(X_train, y_train)
  # Take the first row of the training dataset as the model input example.
  input_example = X_train.iloc[[0]]
  # Log the model and register it as a new version in Unity Catalog.
  mlflow.sklearn.log_model(
      sk_model=clf,
      artifact_path="model",
      # The signature is automatically inferred from the input example and its predicted output.
      input_example=input_example,
      registered_model_name="unity.default.iris",
  )


loaded_model = mlflow.pyfunc.load_model(f"models:/unity.default.iris/1")
predictions = loaded_model.predict(X_test)
iris_feature_names = datasets.load_iris().feature_names
result = pd.DataFrame(X_test, columns=iris_feature_names)
result["actual_class"] = y_test
result["predicted_class"] = predictions
result[:4]

This code snippet will create a registered model default.unity.iris and log the trained model as model version 1. It then loads the model from the Unity Catalog server, and performs batch inference on the test set using the loaded model.

The results can be seen in the Unity Catalog UI at http://localhost:3000, per the instructions in the Interact with the Unity Catalog tutorial.

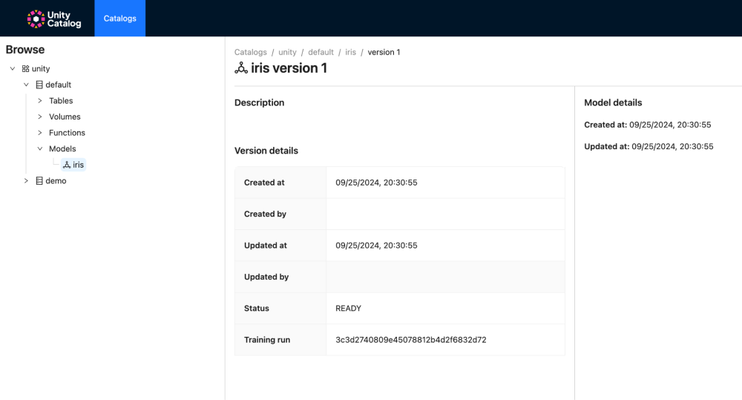

Unity Catalog UI Models

APIs and Compatibility

Section titled “APIs and Compatibility”
  • Open API specification: See the Unity Catalog Rest API.
  • Compatibility and stability: The APIs are currently evolving and should not be assumed to be stable.
