Unity Catalog UI

The Unity Catalog UI allows you to interact with a Unity Catalog server to view or create data and AI assets.

Start Unity Catalog UI locally

To use the Unity Catalog UI, start a new terminal and ensure you have already started the UC server (e.g., ./bin/start-uc-server)

Prerequisites

The Unity Catalog UI requires both Node and Yarn.

To start the UI locally, run the following commands to start yarn

cd /ui
yarn install
yarn start

Assets

Catalogs

The following steps show how you can create, describe, and delete UC catalogs.

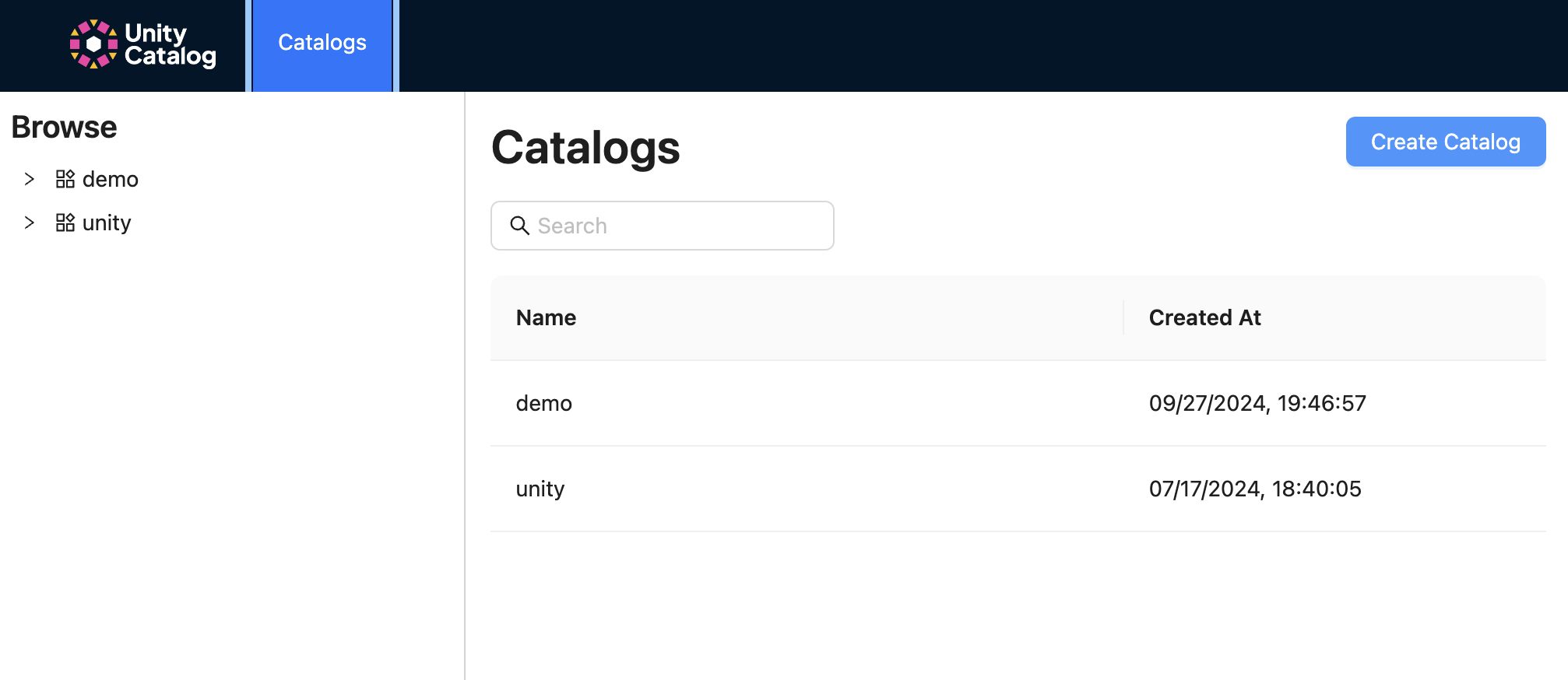

1. List and create catalogs

   After clicking the top Catalog button, you will see your list of catalogs. To create a catalog, click the Create Catalog button to the right.

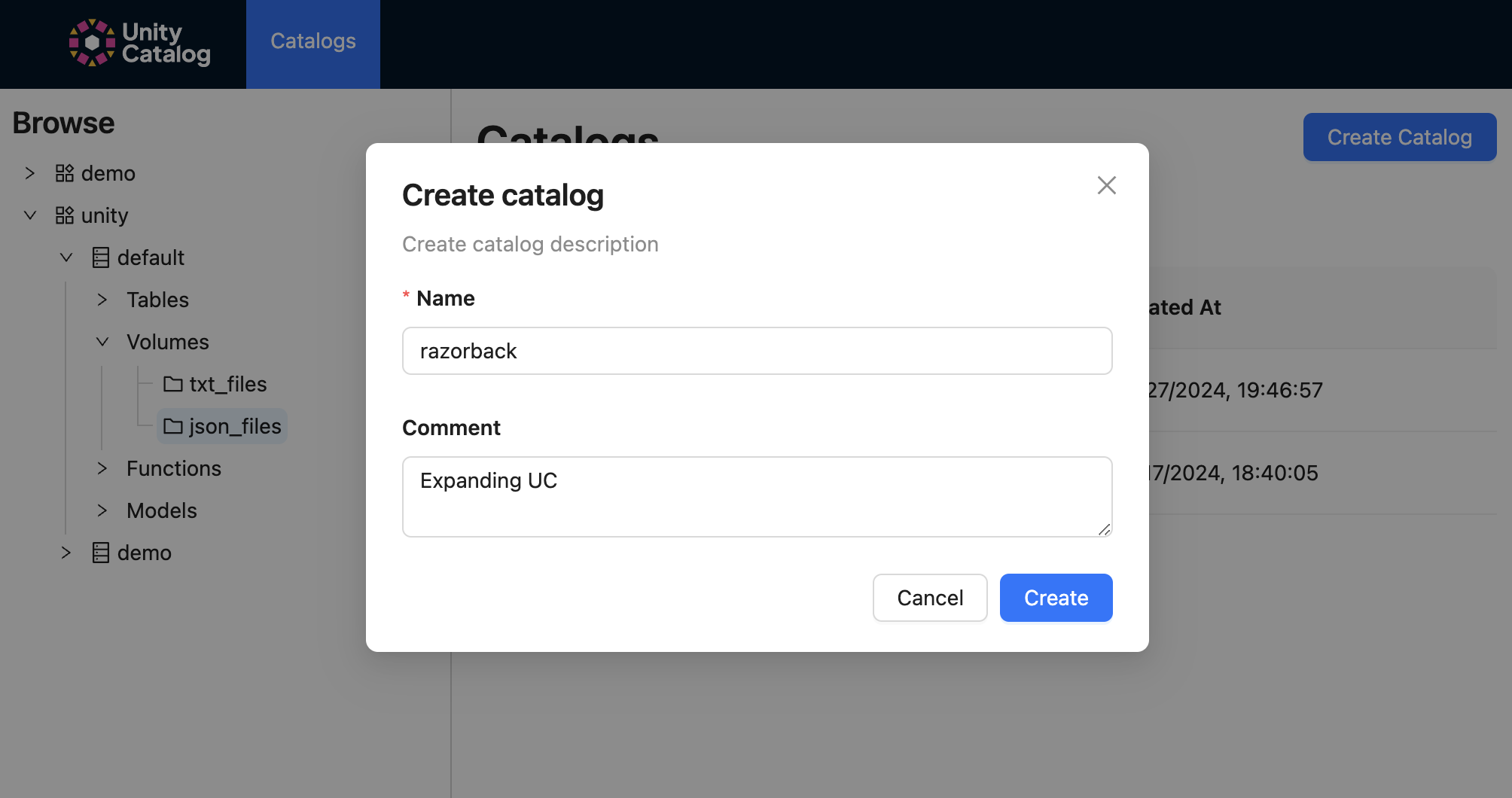

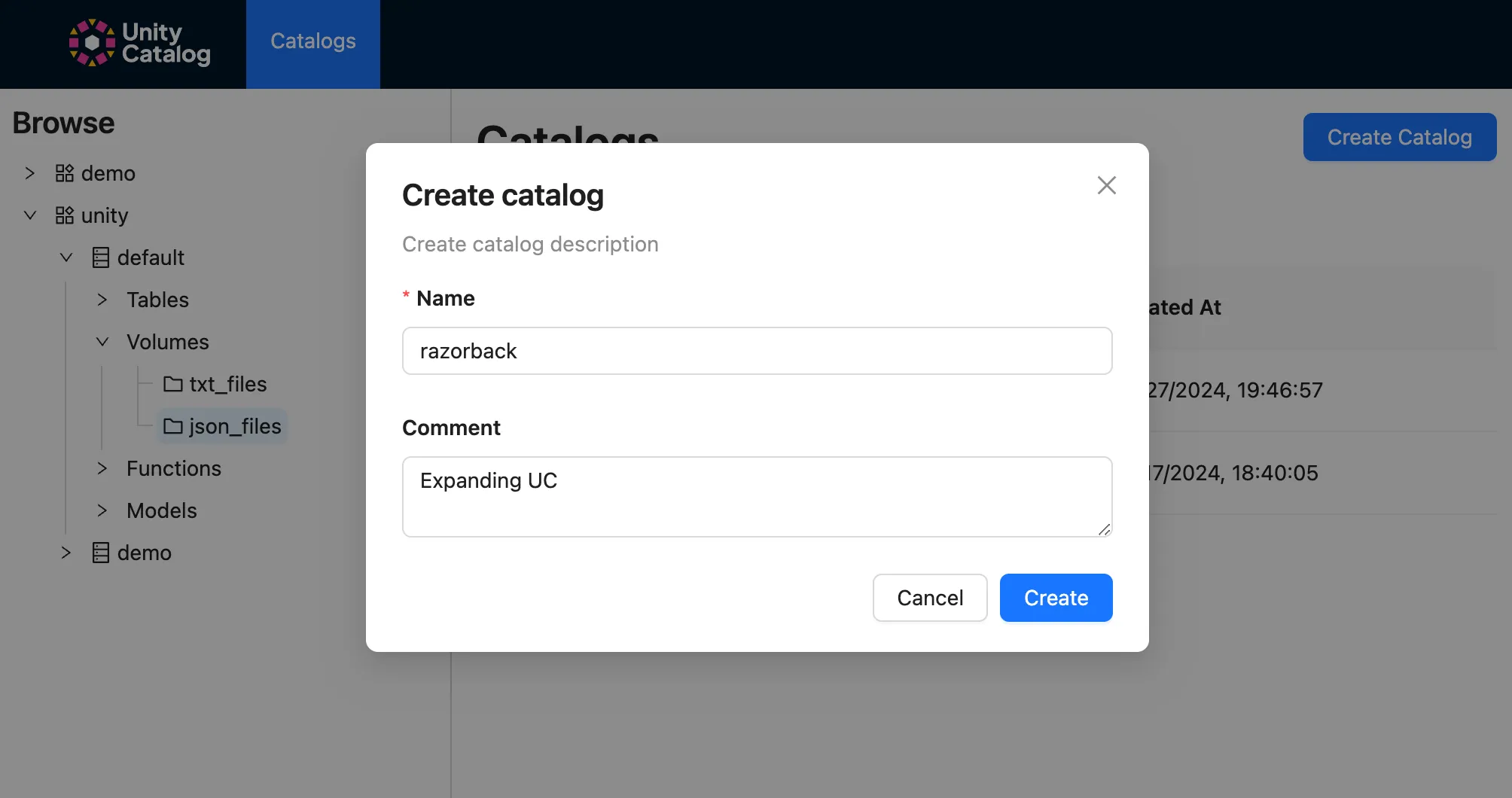

2. Create catalog dialog

   Specify the name and include any comments when creating your catalog.

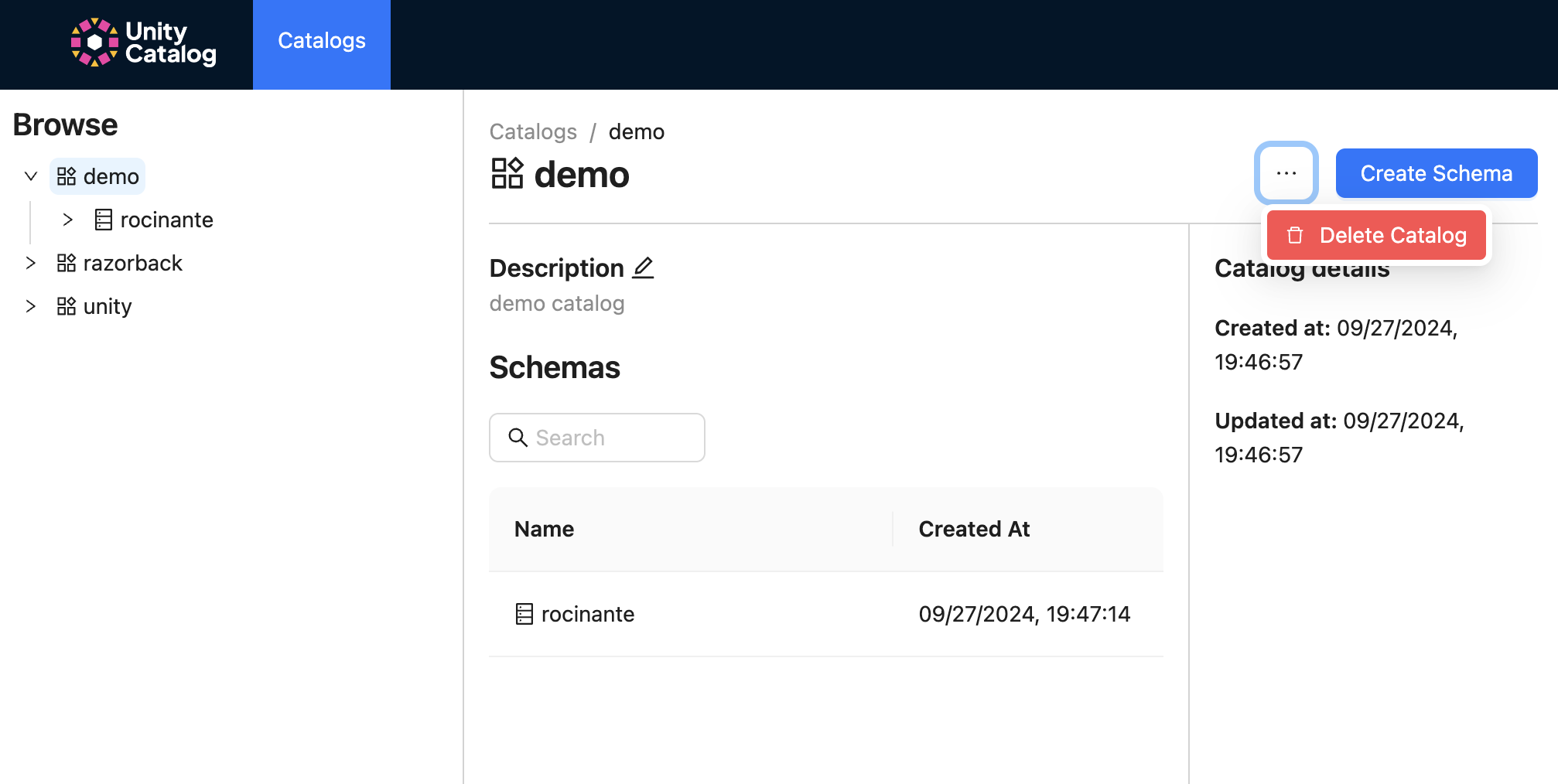

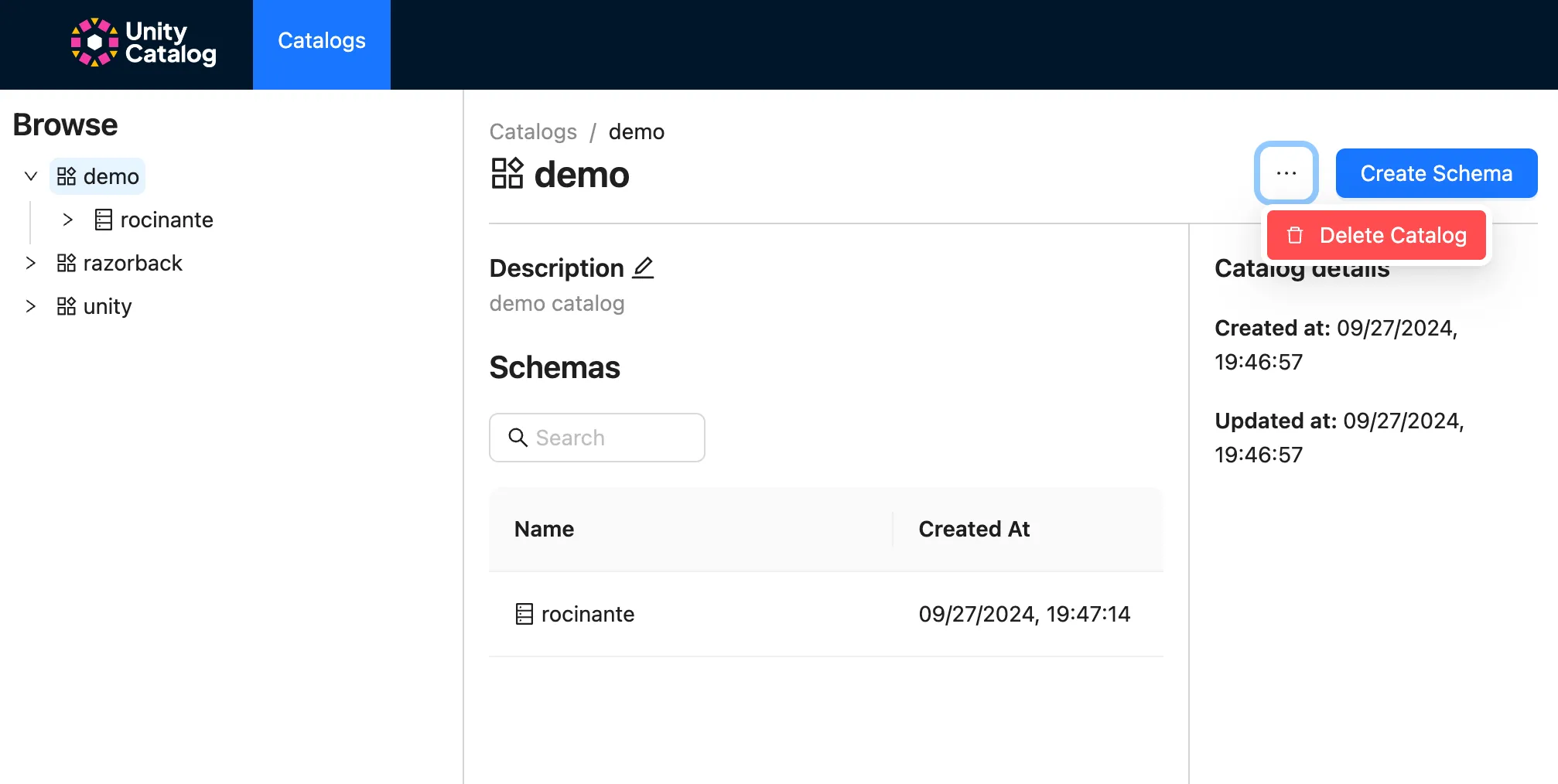

3. Delete a catalog

   Click the horizontal three dots next to Create Schema button to delete your catalog.



---

Schemas

The following steps show how you can create, describe, and delete UC schemas.

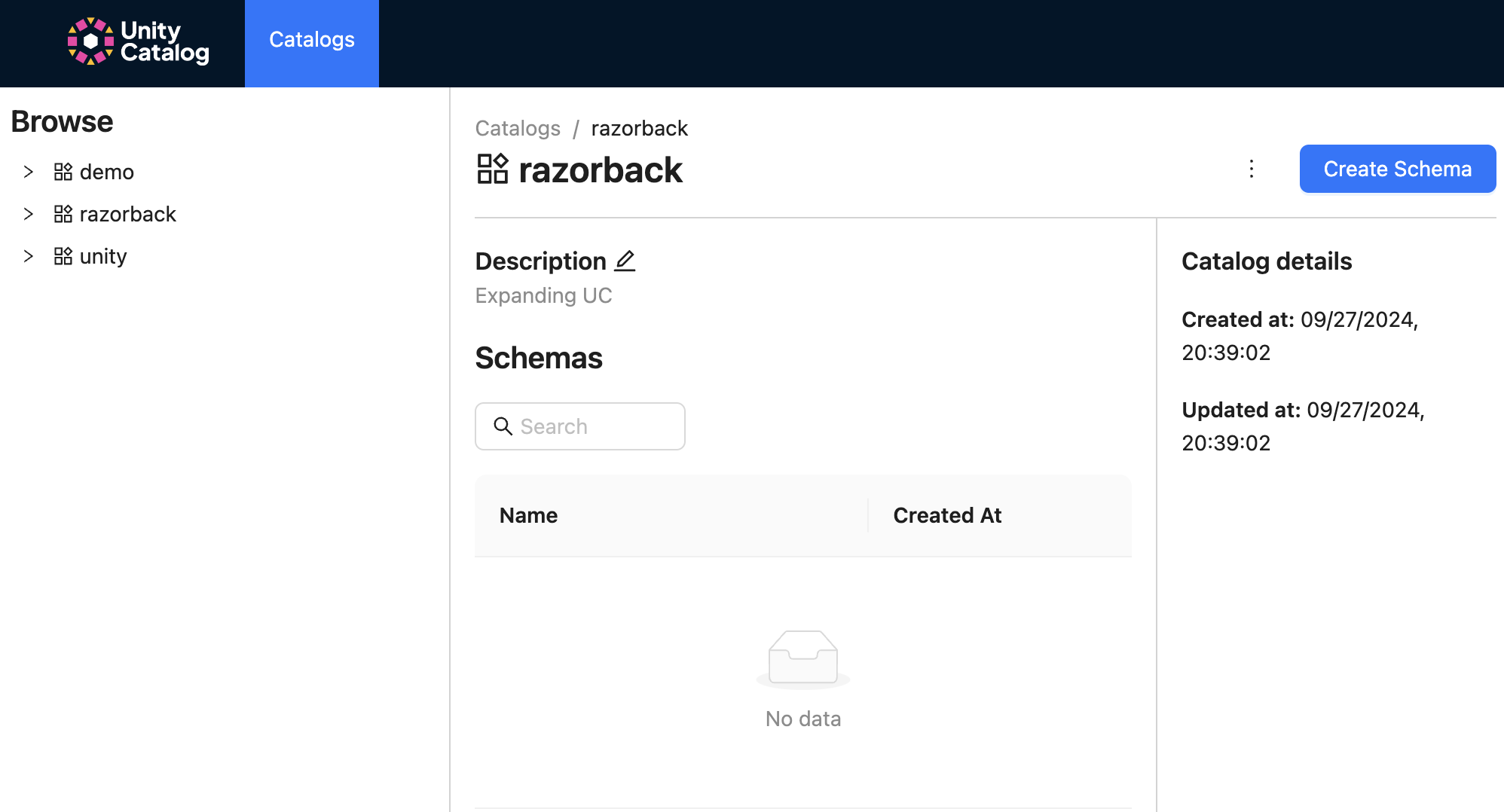

1. List and create schemas

   After clicking on any catalog, the main dialog contains the list of available schemas. Click the Create Schemas button to the right to create a new schema.

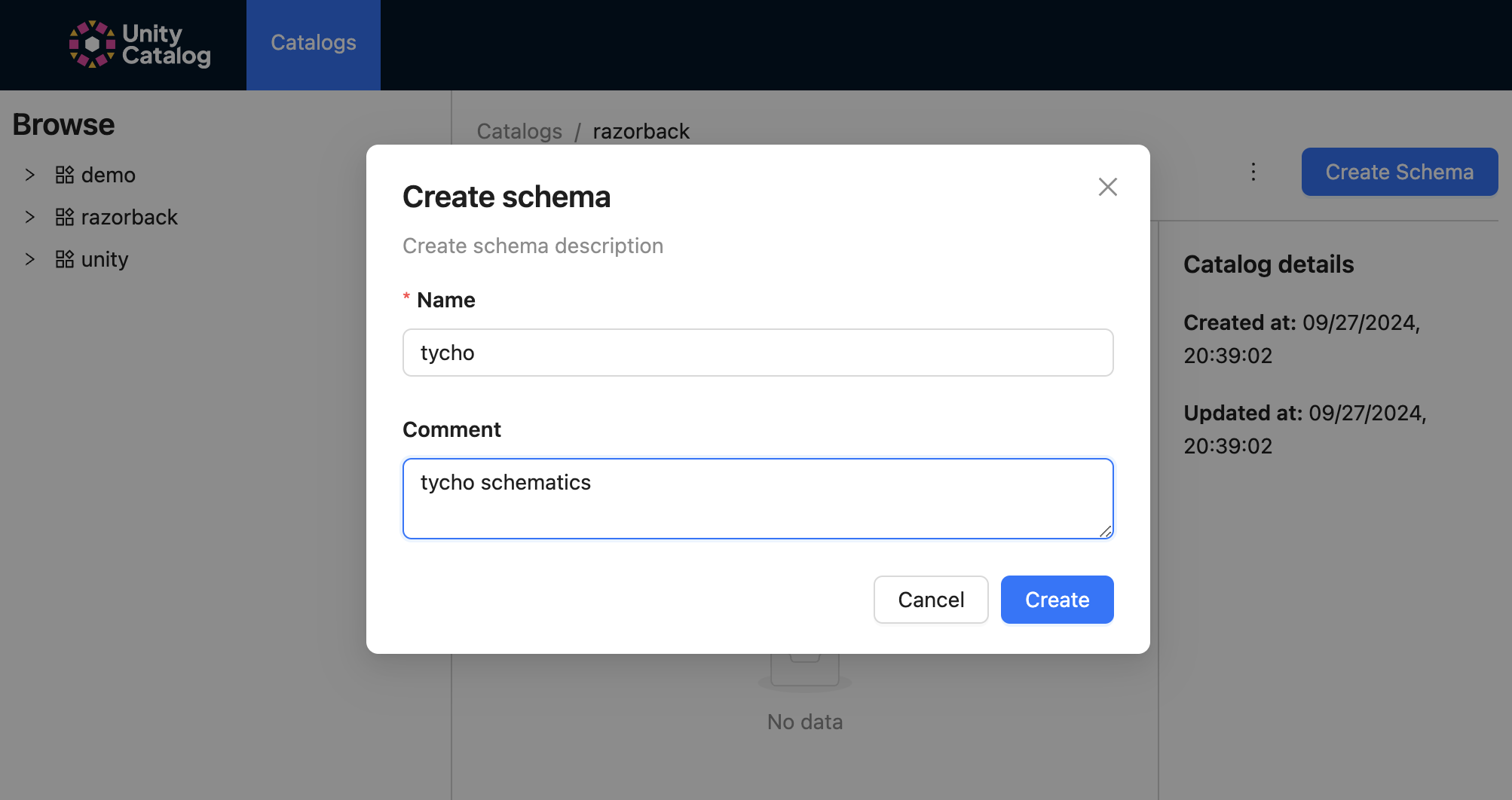

2. Create schemas dialog

   Specify the name and include any comments when creating your schema.

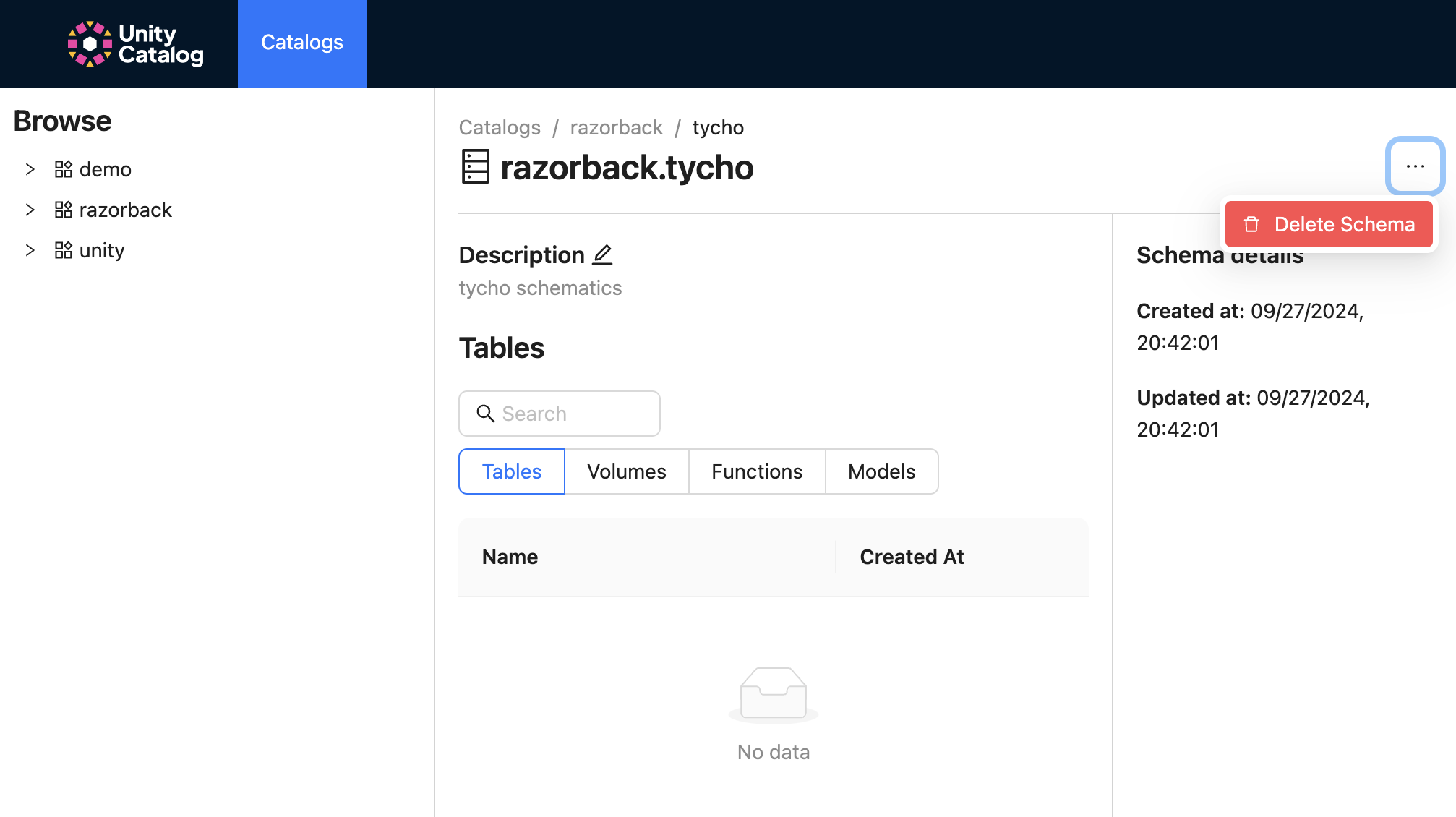

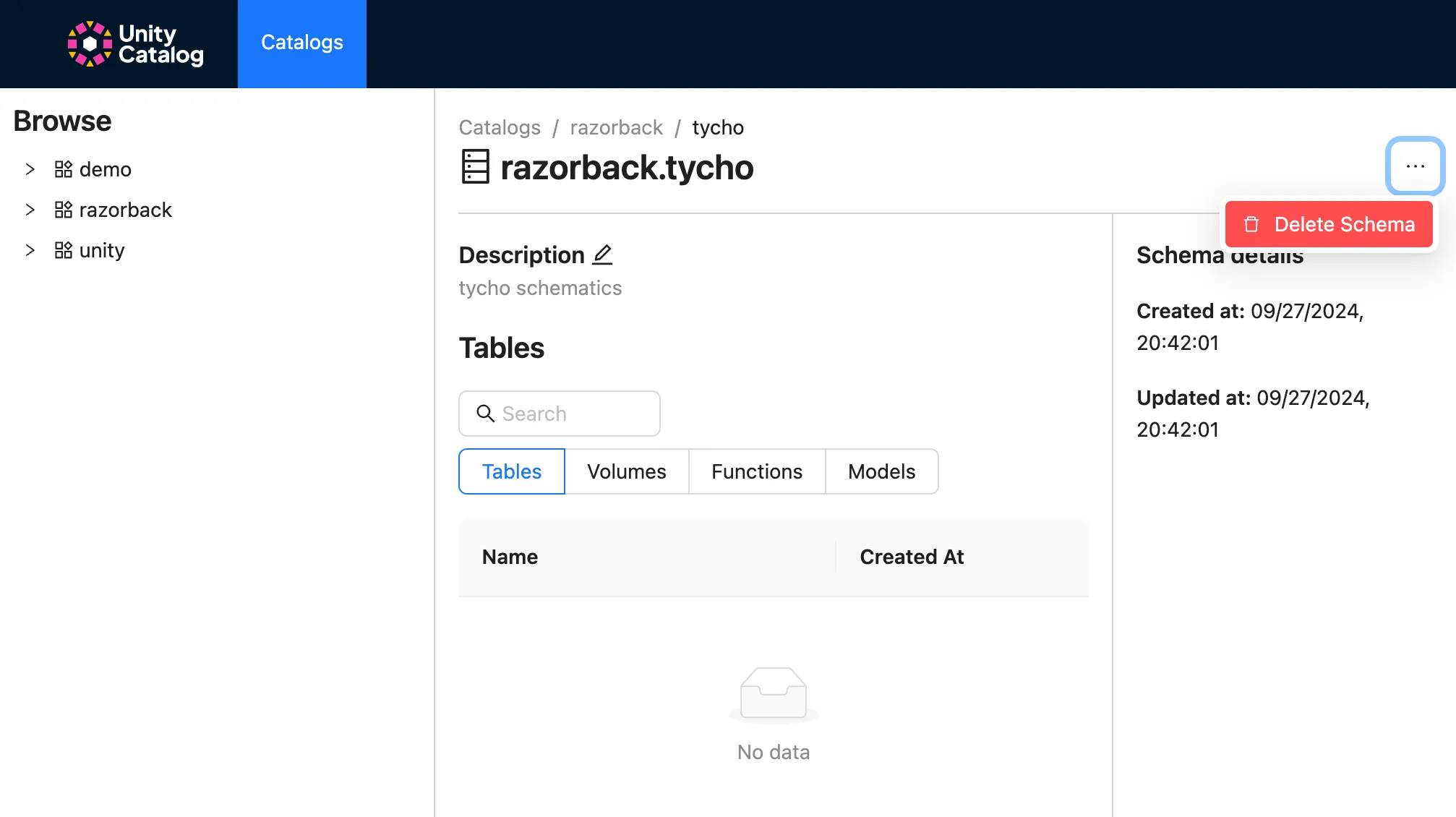

3. Delete a schema

   Click the horizontal three dots to the right to delete your schema.



---

Tables

The following steps show how you can view your UC table metadata and descriptions.

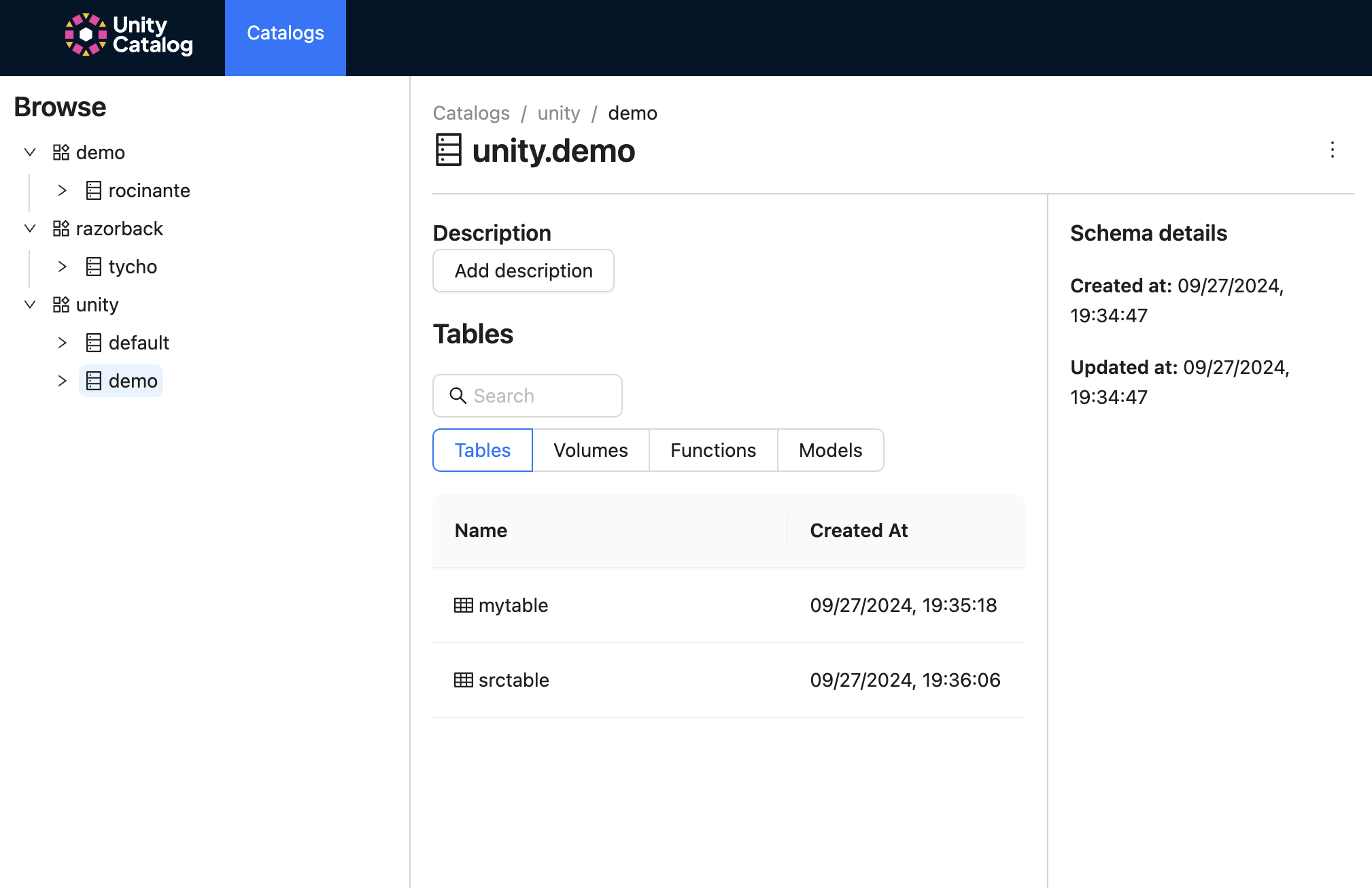

1. View tables in schema (1)

   Click on the schema (e.g., unity.demo) to view its tables.

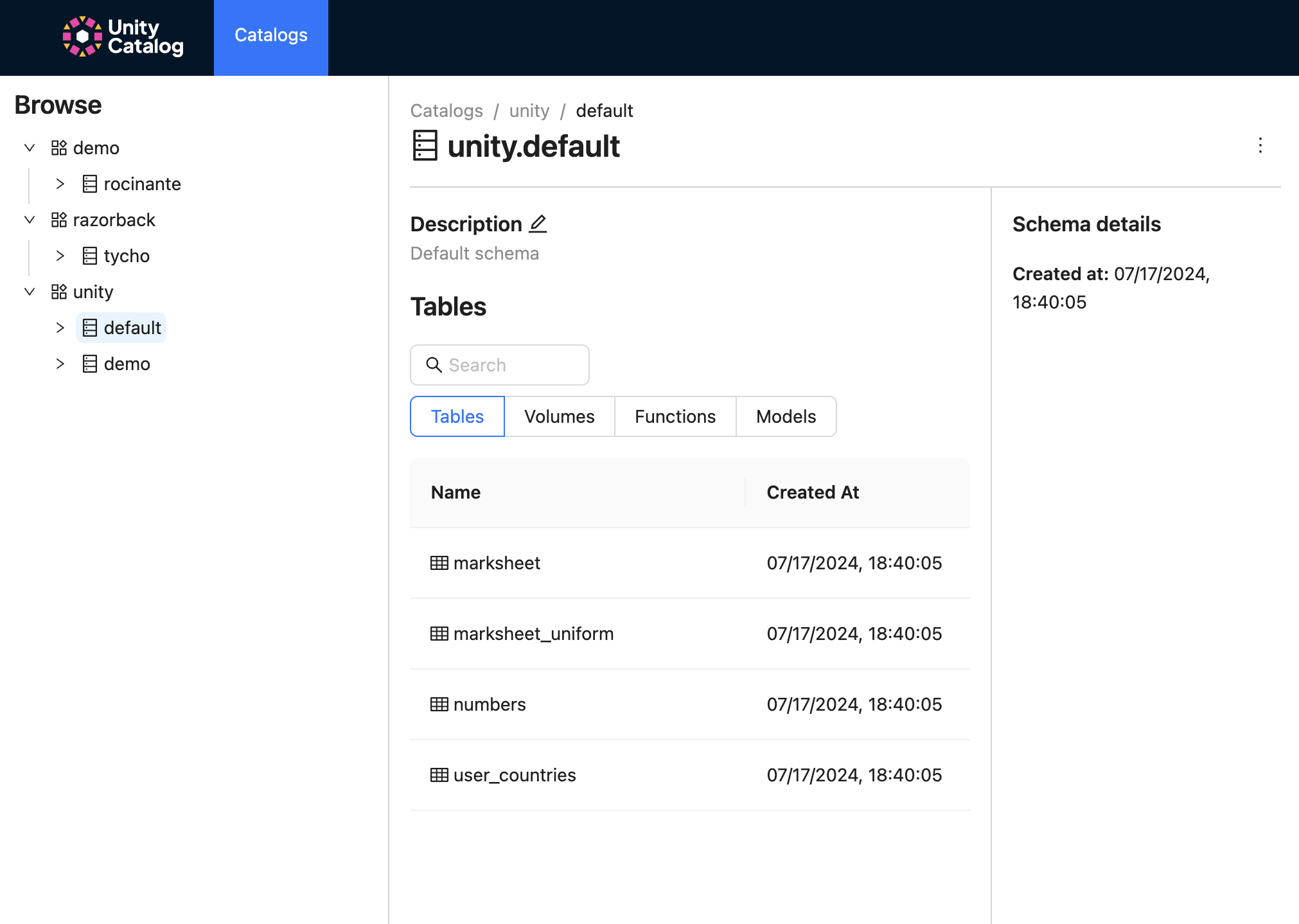

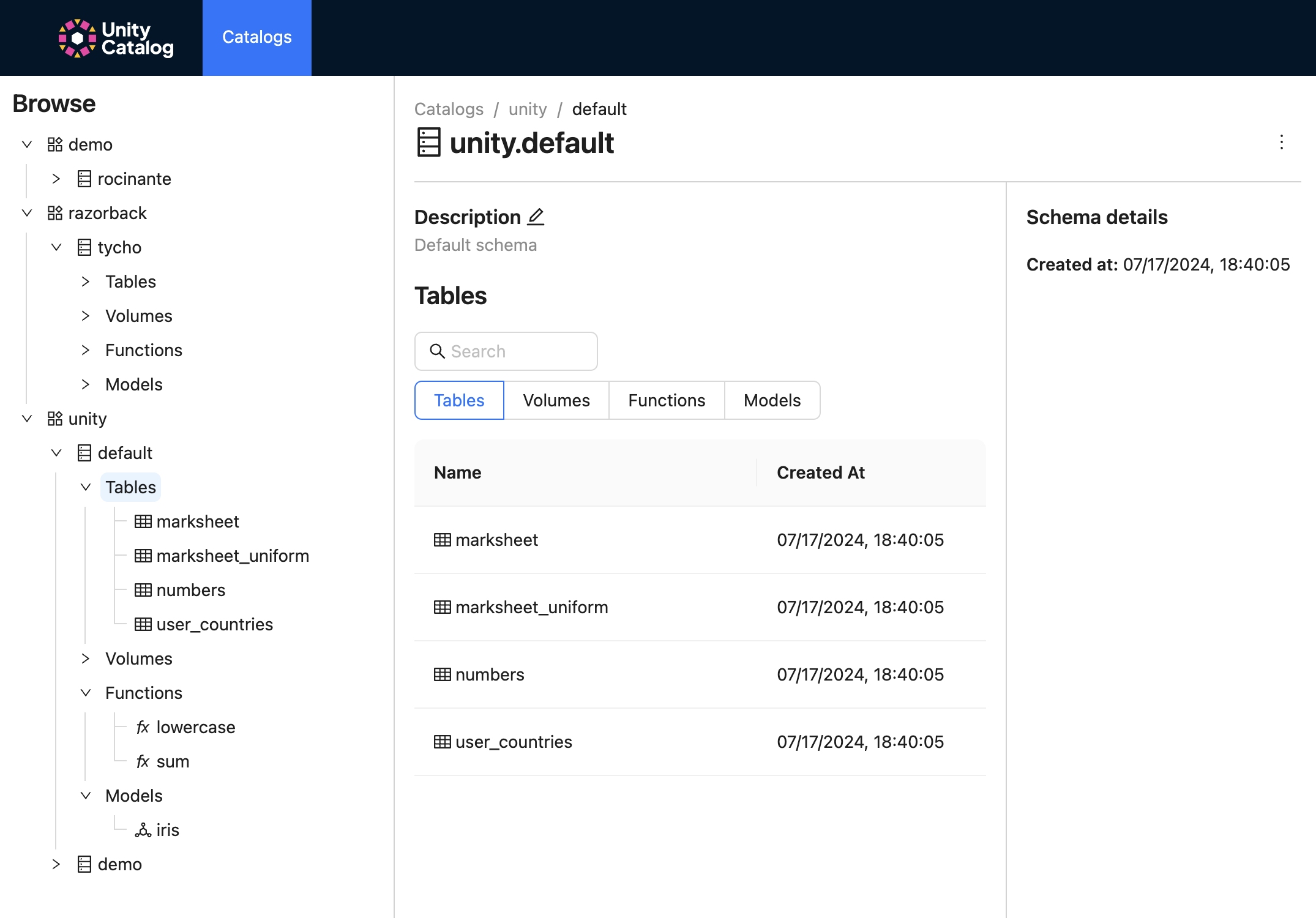

2. View tables in schema (2)

   Click on the schema (e.g., unity.default) to view its tables.

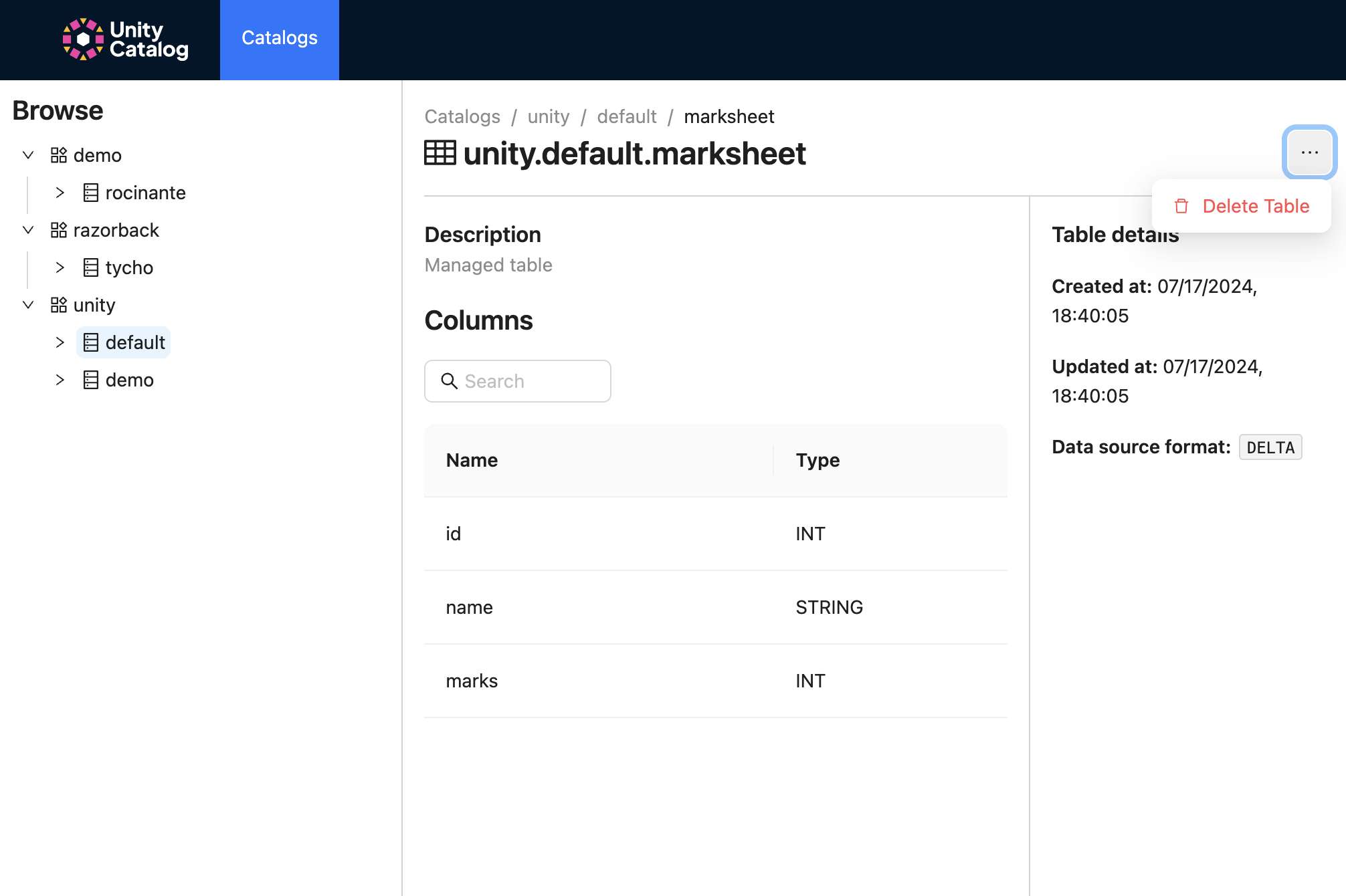

3. View table metadata

   Click on any table (e.g., unity.default.marksheet) to view its metadata. You also have the option to delete the table via the three horizontal dots on the right.



---

Volumes

The following steps show how you can view your UC volume metadata and descriptions.

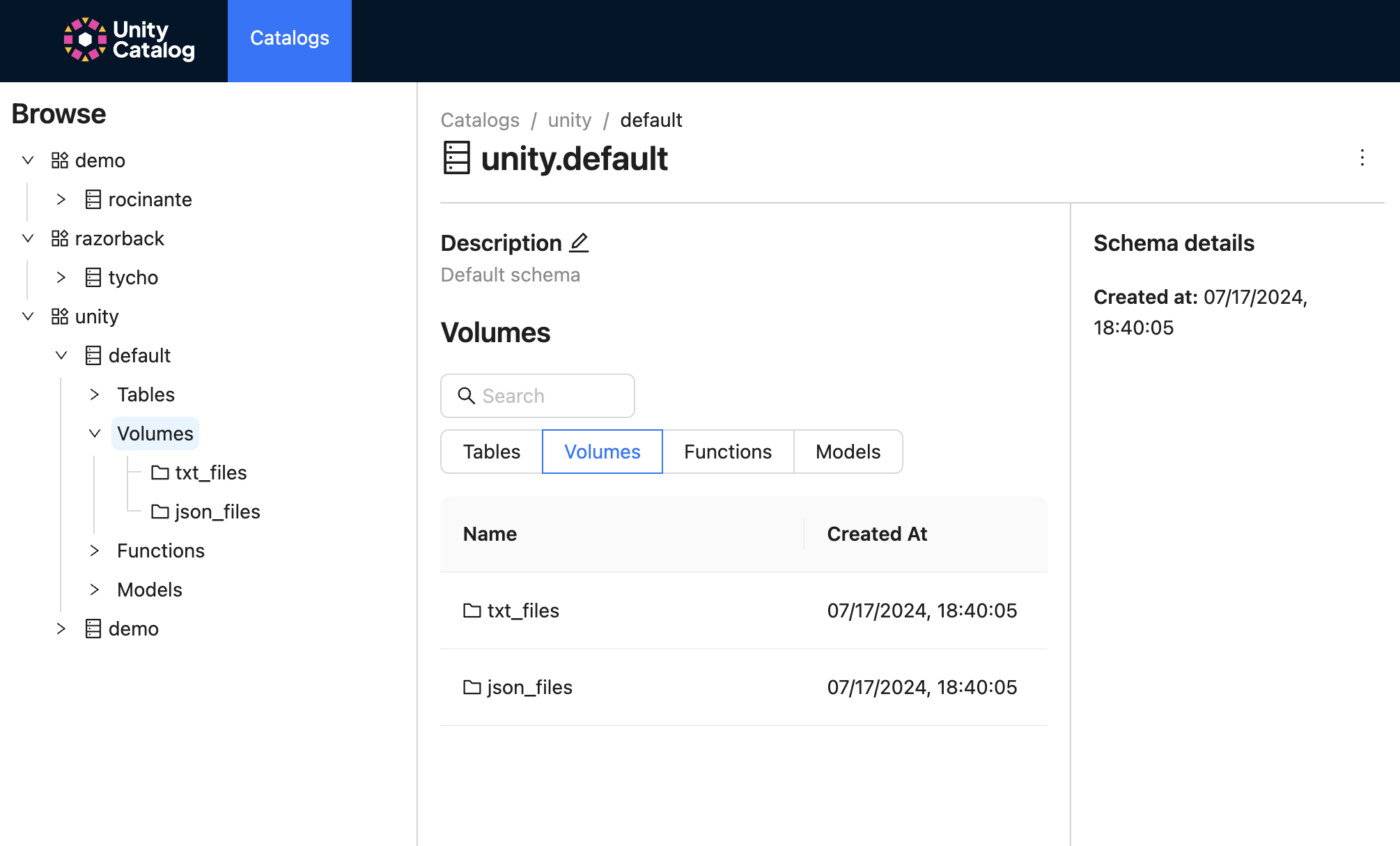

1. Traverse to volumes

   Using the left-hand nav bar, click on catalog > schema (e.g., unity > default) to view the available volumes.

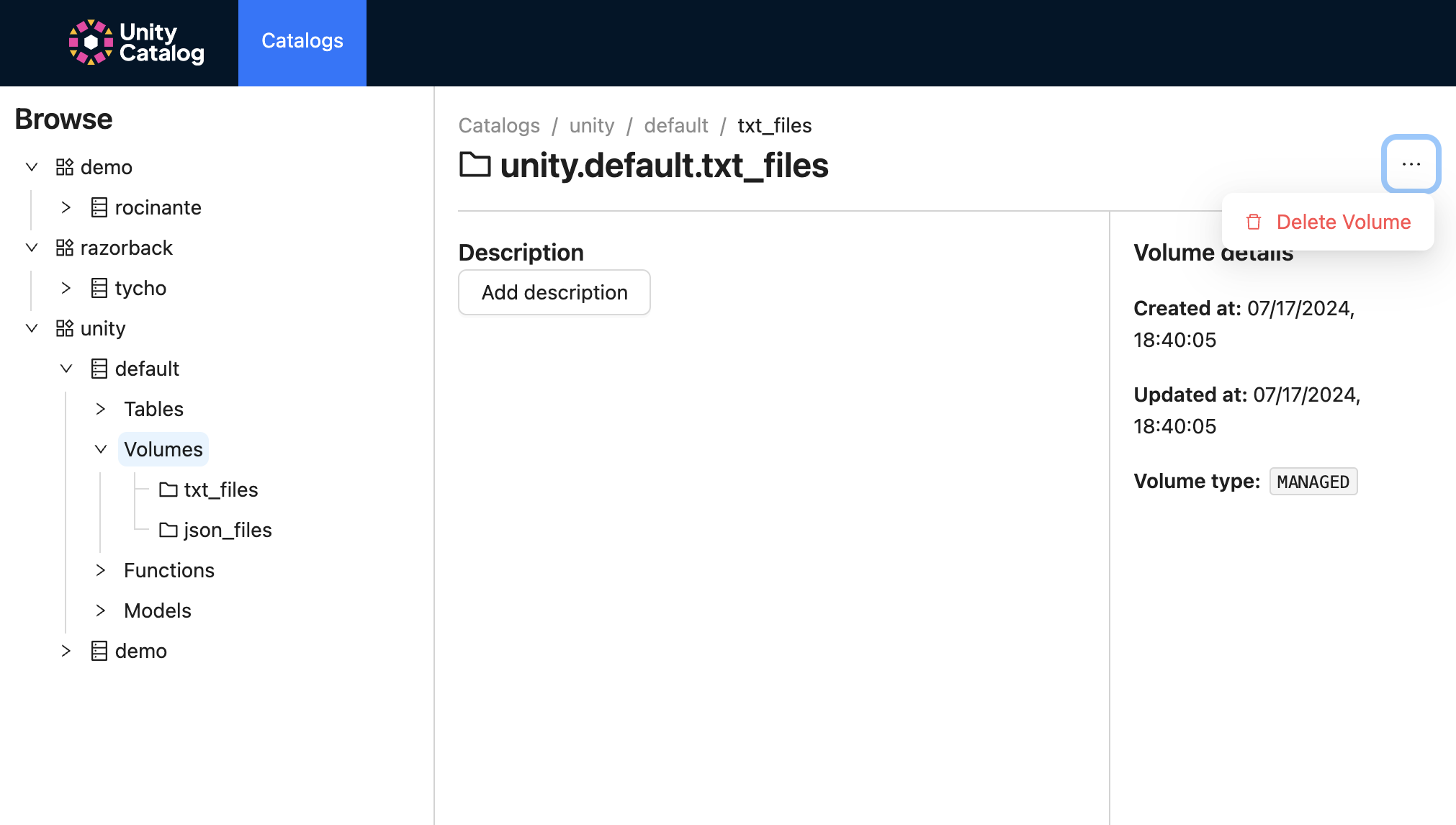

2. View volume metadata

   Click on the volume (e.g., unity.default.txt_files) to view its metadata. You have the option to delete it by click on the three horizontal dots to the right.

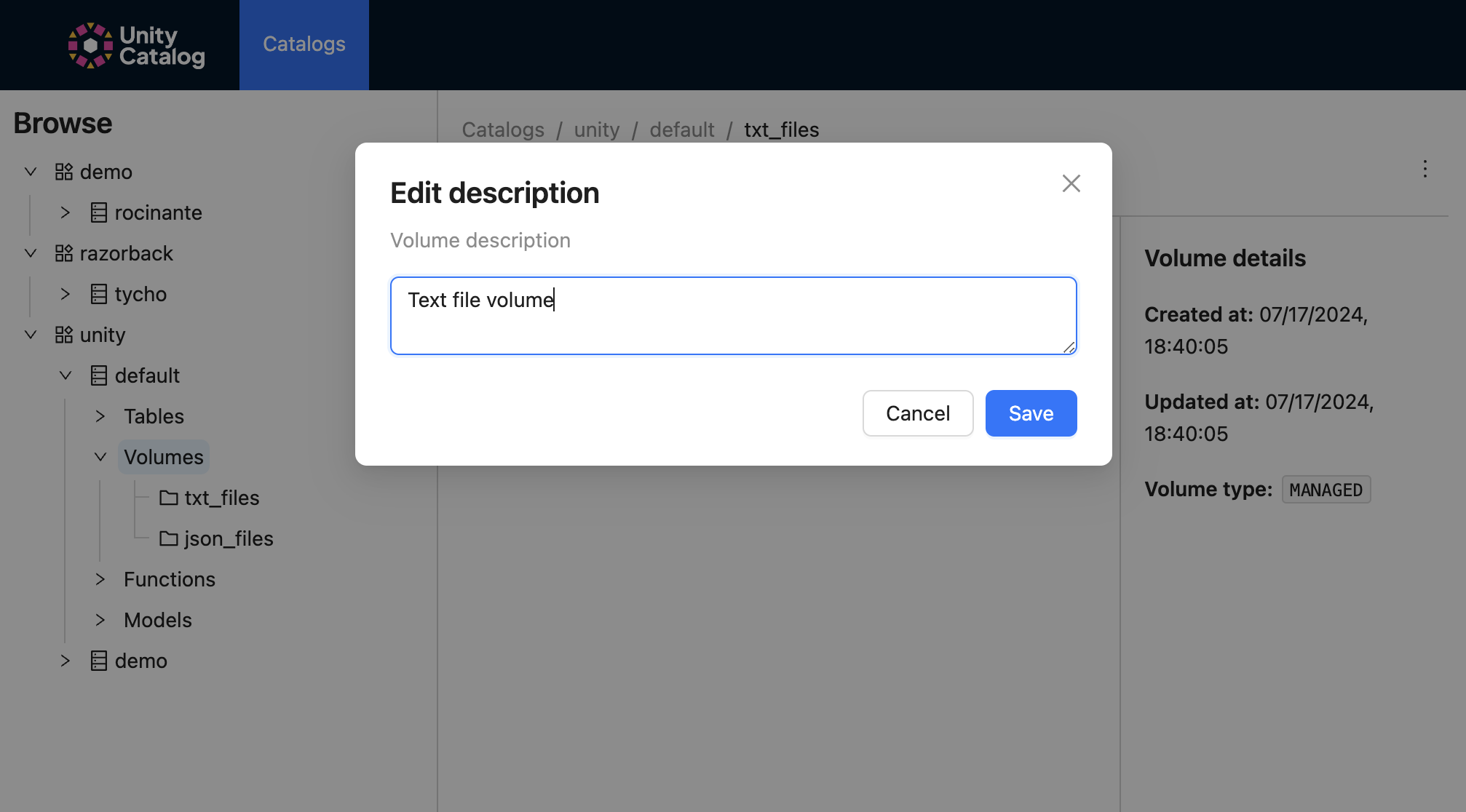

3. Edit volume description

   Click the edit button to change its descripton.



---

Functions

The following steps show how you can view your UC functions metadata and descriptions.

1. Traverse to functions

   Using the left-hand nav bar, click on catalog > schema (e.g., unity > default) to view the available functions.

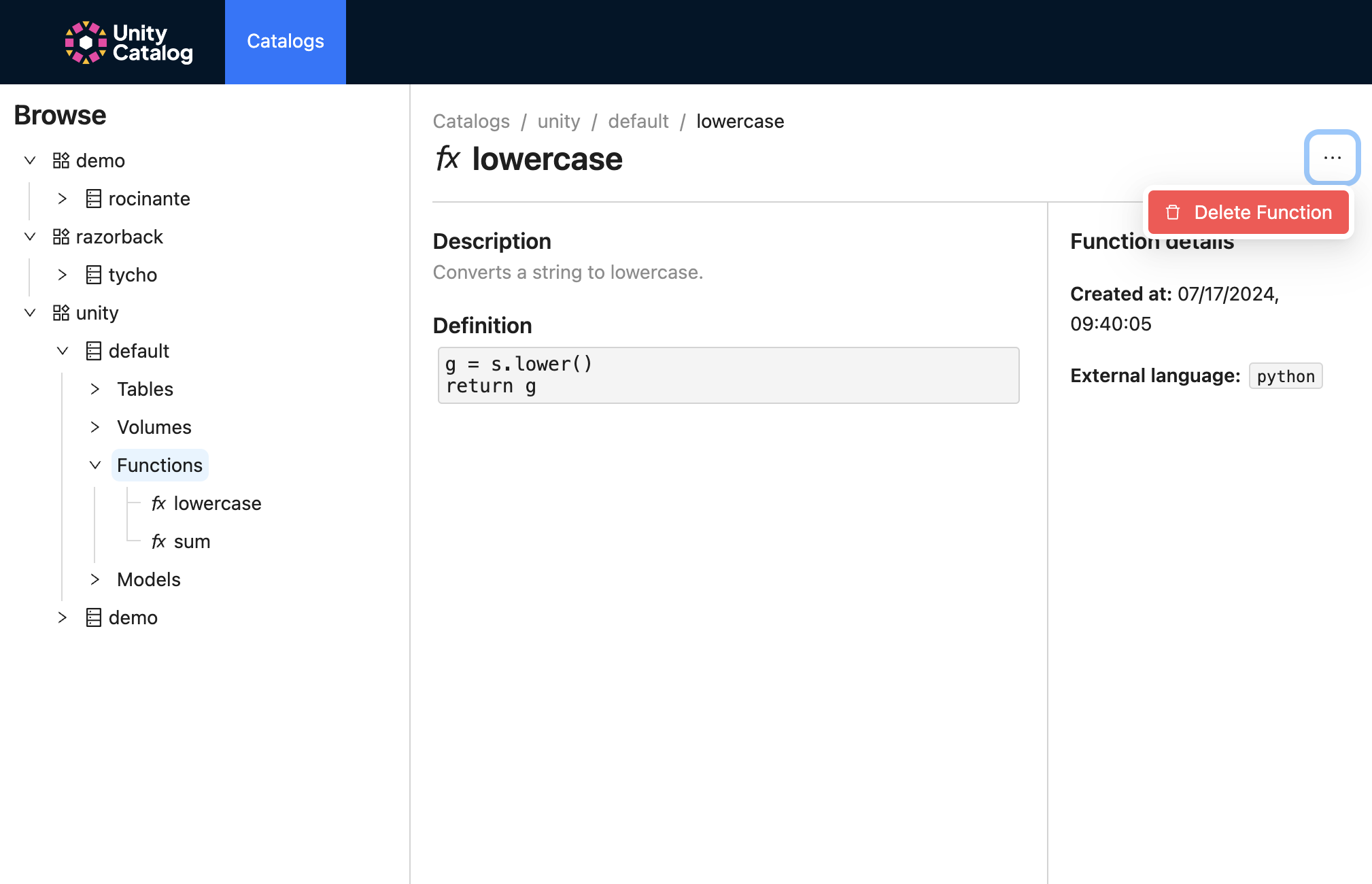

2. View functions metadata

   Click on the volume (e.g., unity.default.lowercase) to view its metadata. You have the option to delete it by click on the three horizontal dots to the right.



---

Models

The following steps show how you can list, describe and delete your UC models.

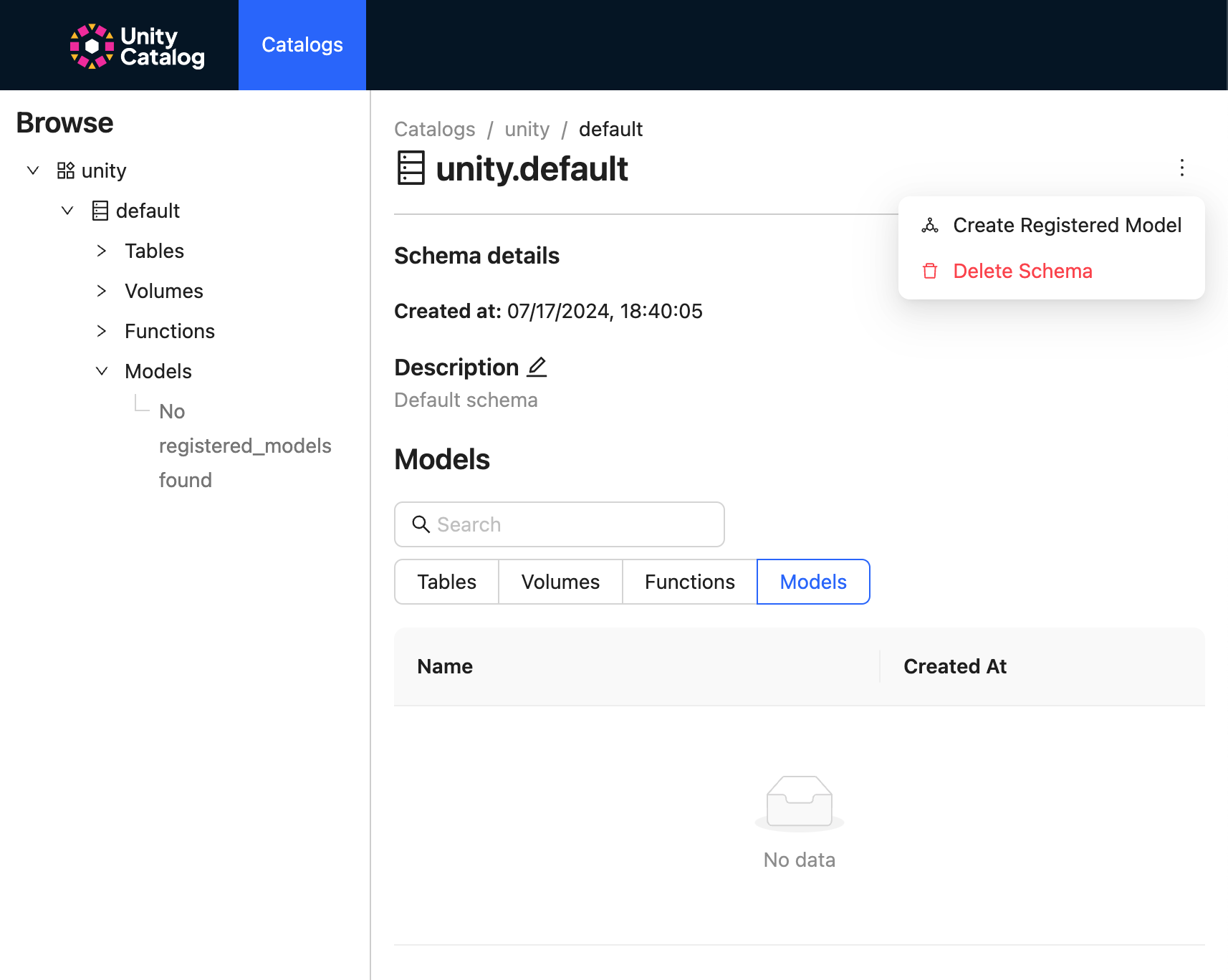

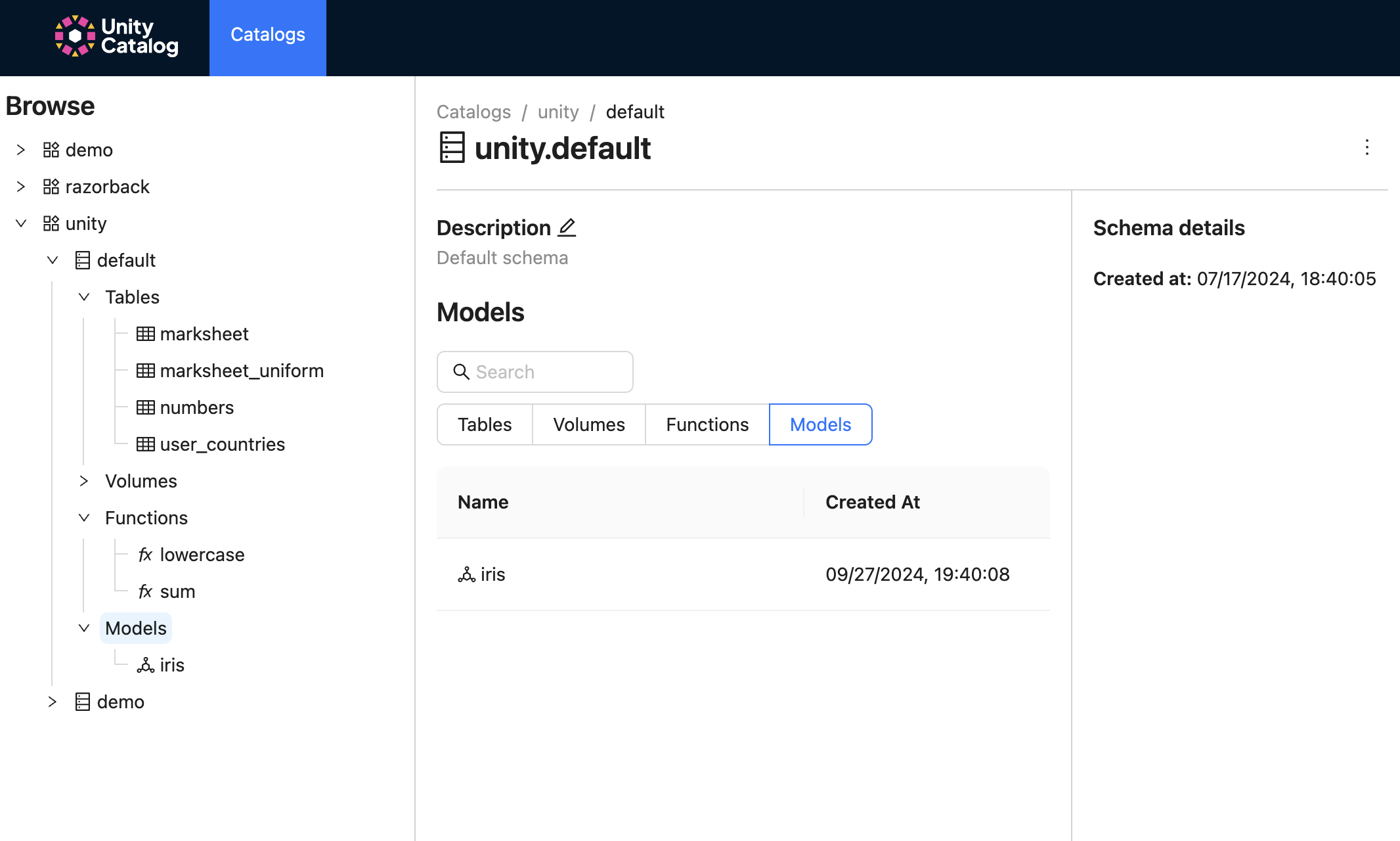

1. List and create models

   After clicking on any schema > models, the main dialog contains the list of available models. Click the horizontal three dots button to the right to create a new model.

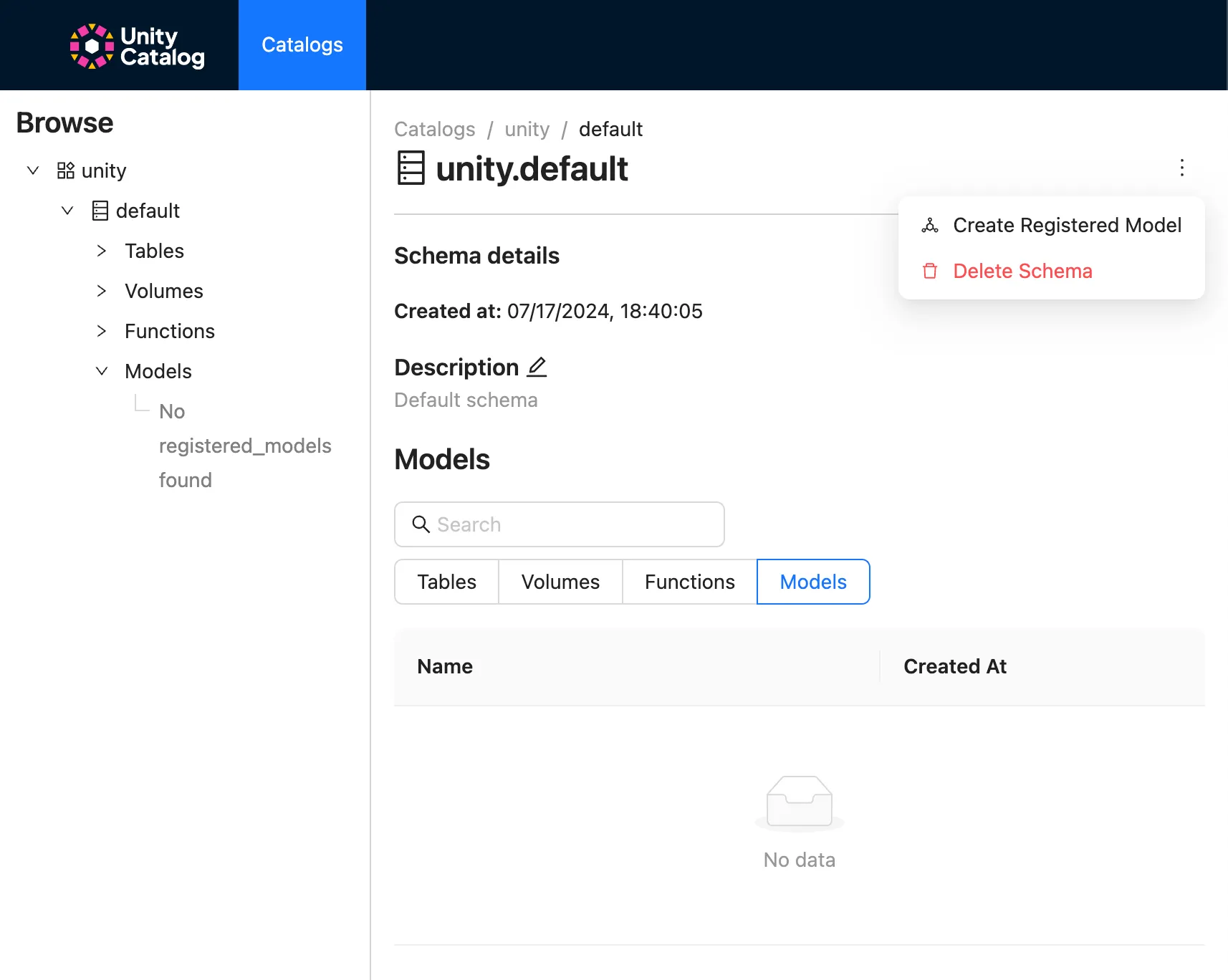

2. Create model

   Click the edit button to change its descripton.

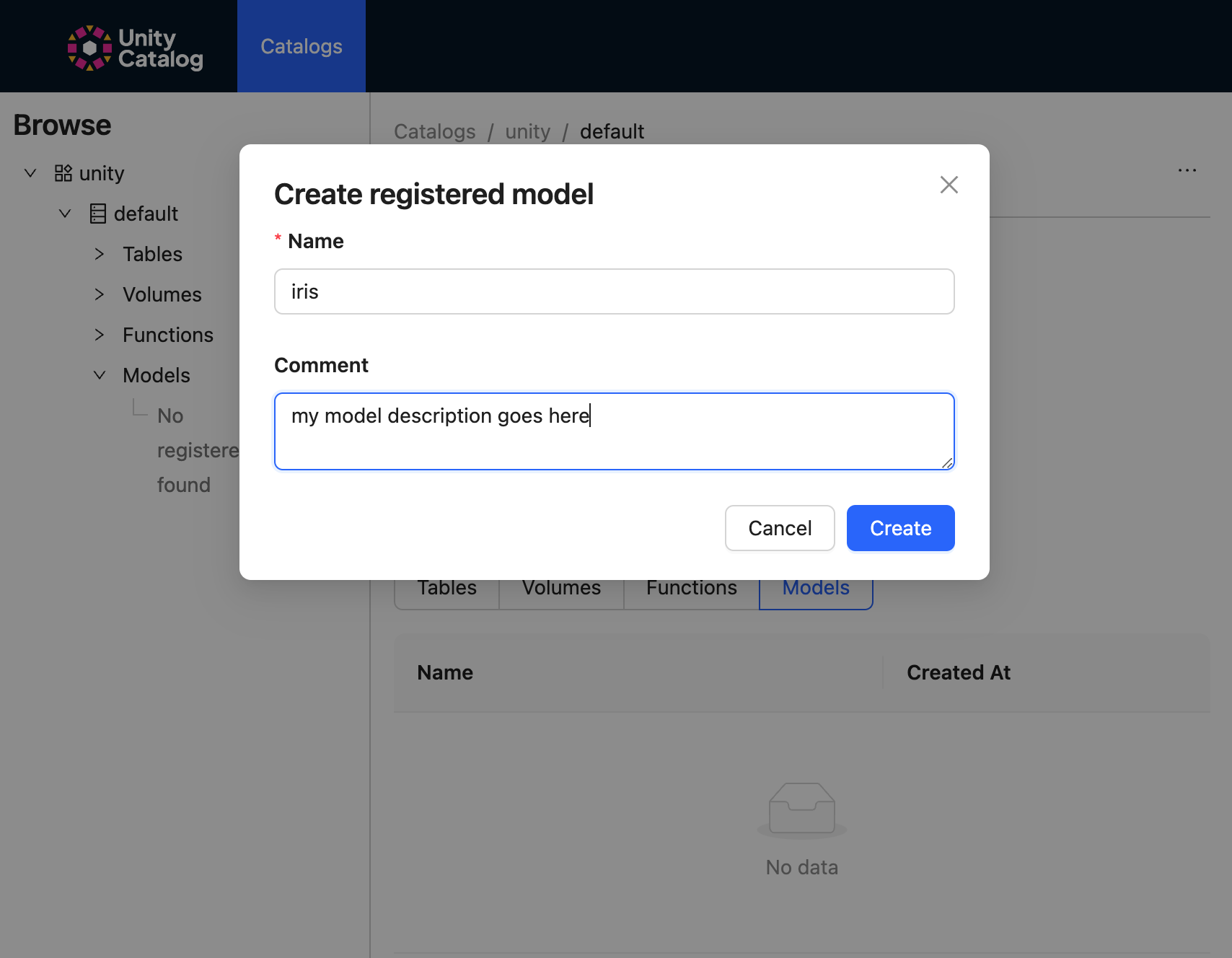

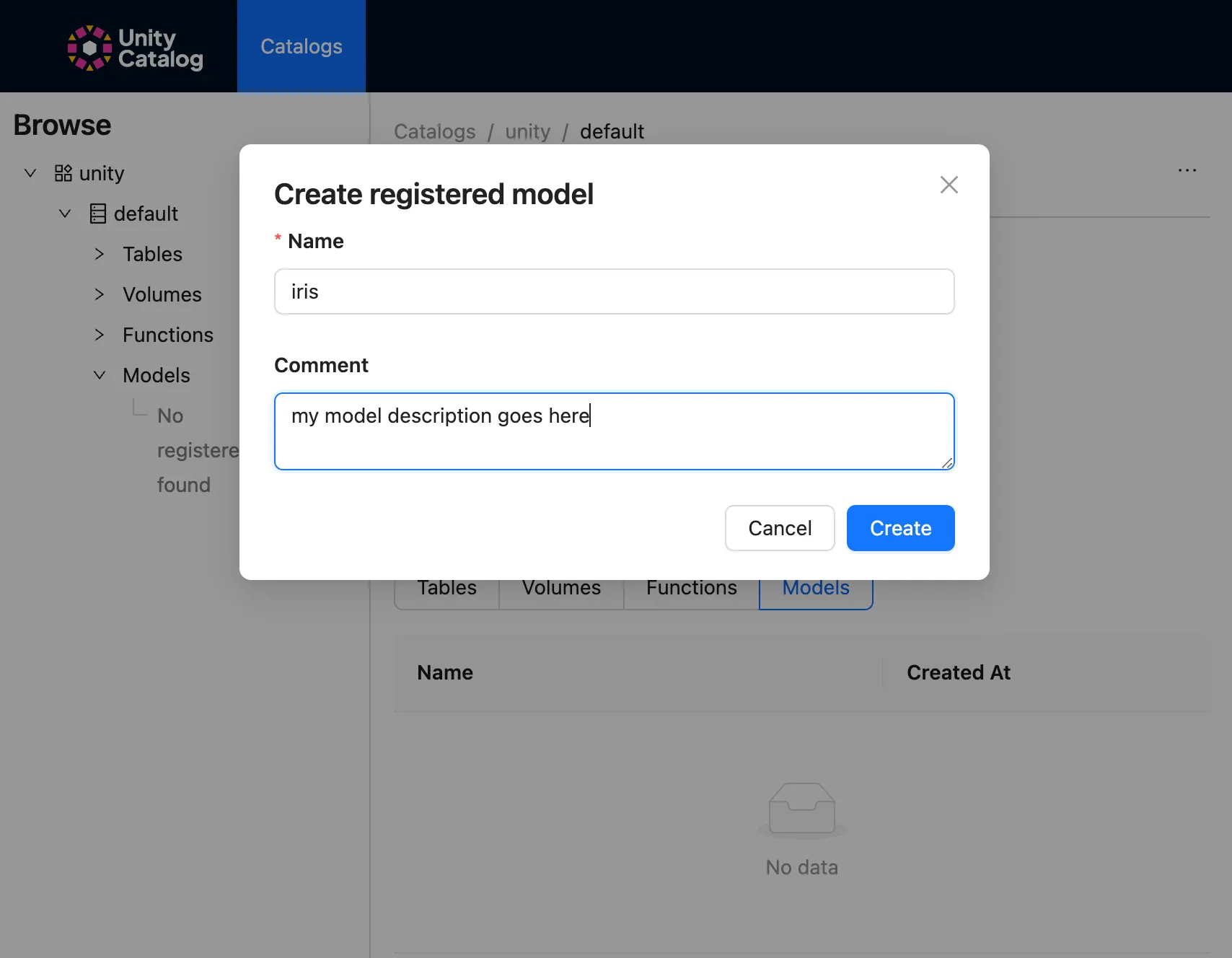

3. Create model dialog

   Specify the name and include any comments when creating your model.

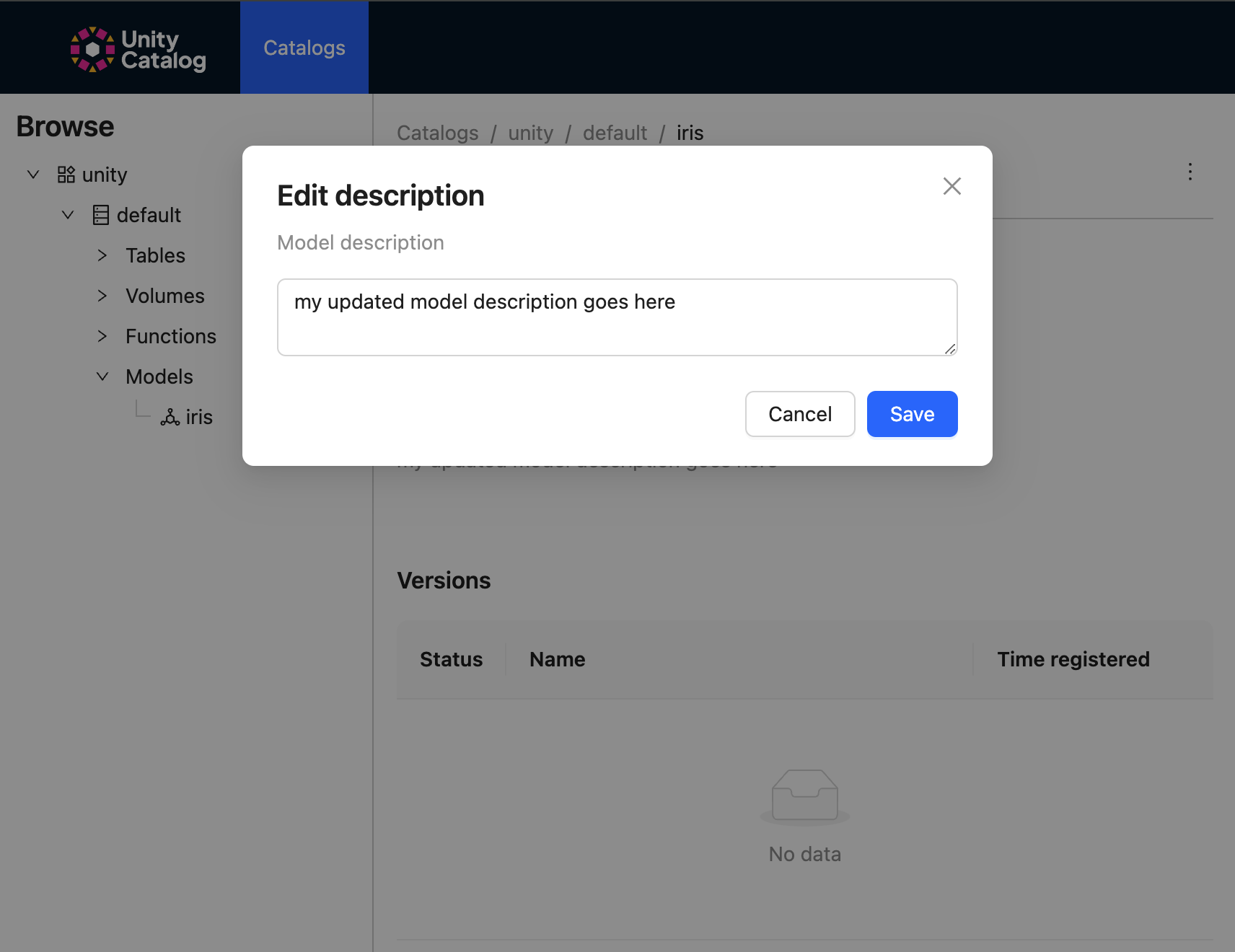

4. Edit model description

   Click the edit button to change its descripton.

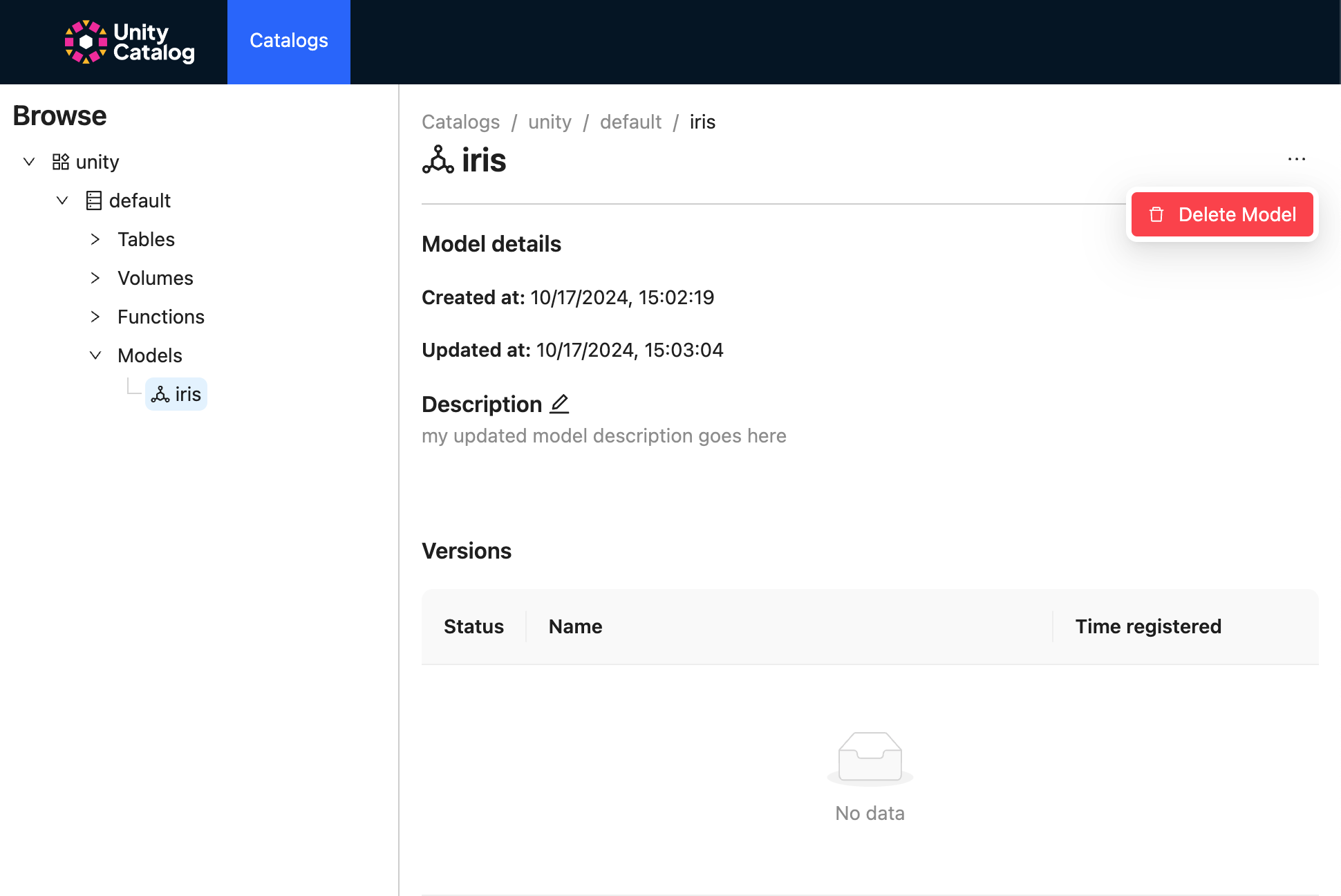

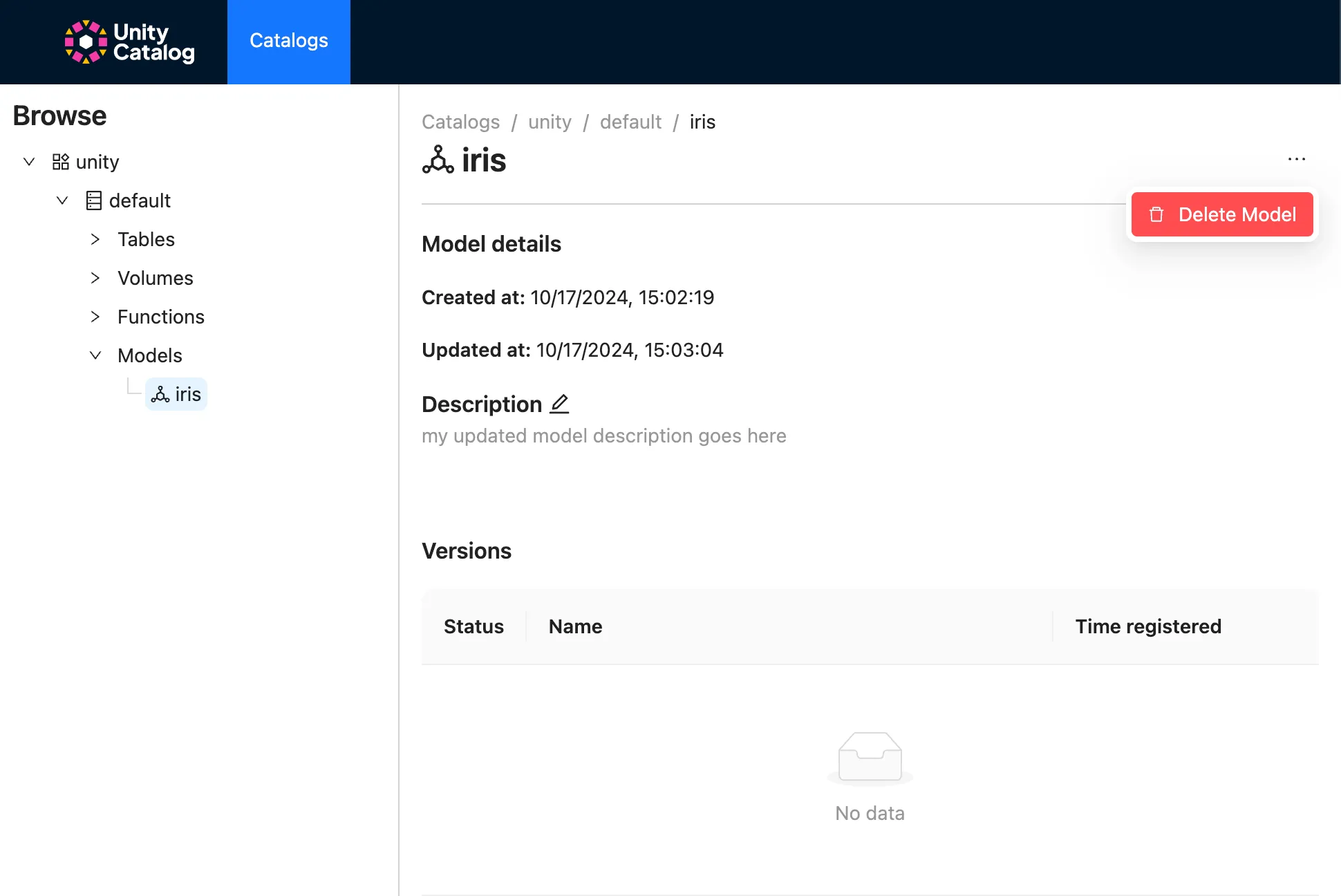

5. Delete a model

   Click the horizontal three dots to the right to delete your model.



---

Model Versions

The following steps show how you can view your UC model versions and their metadata.

1. Traverse to models

   Using the left-hand nav bar, click on catalog > schema (e.g., unity > default) to view the available models.

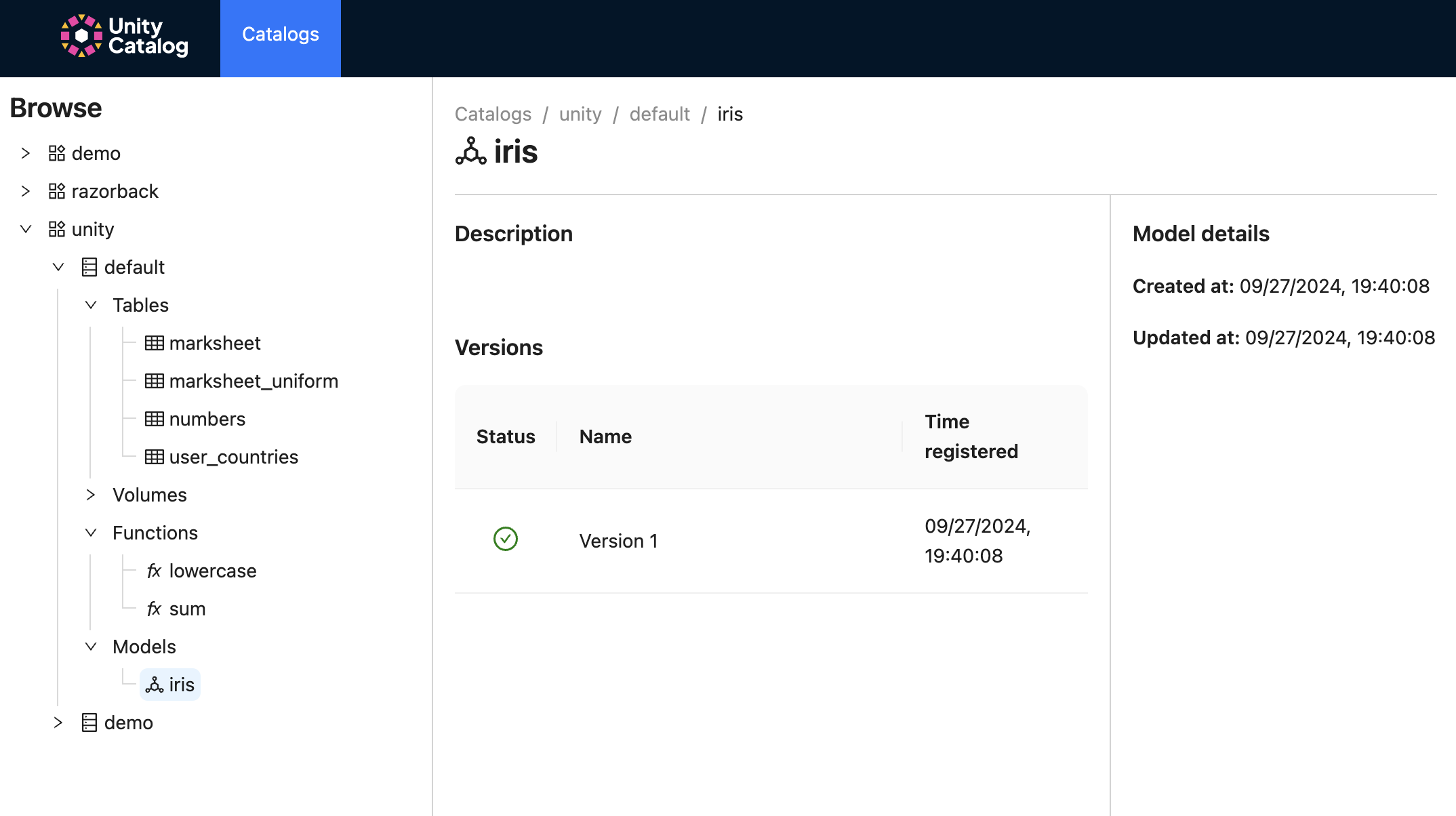

2. View model versions

   Click on the model (e.g., unity.default.iris) to view its version(s).

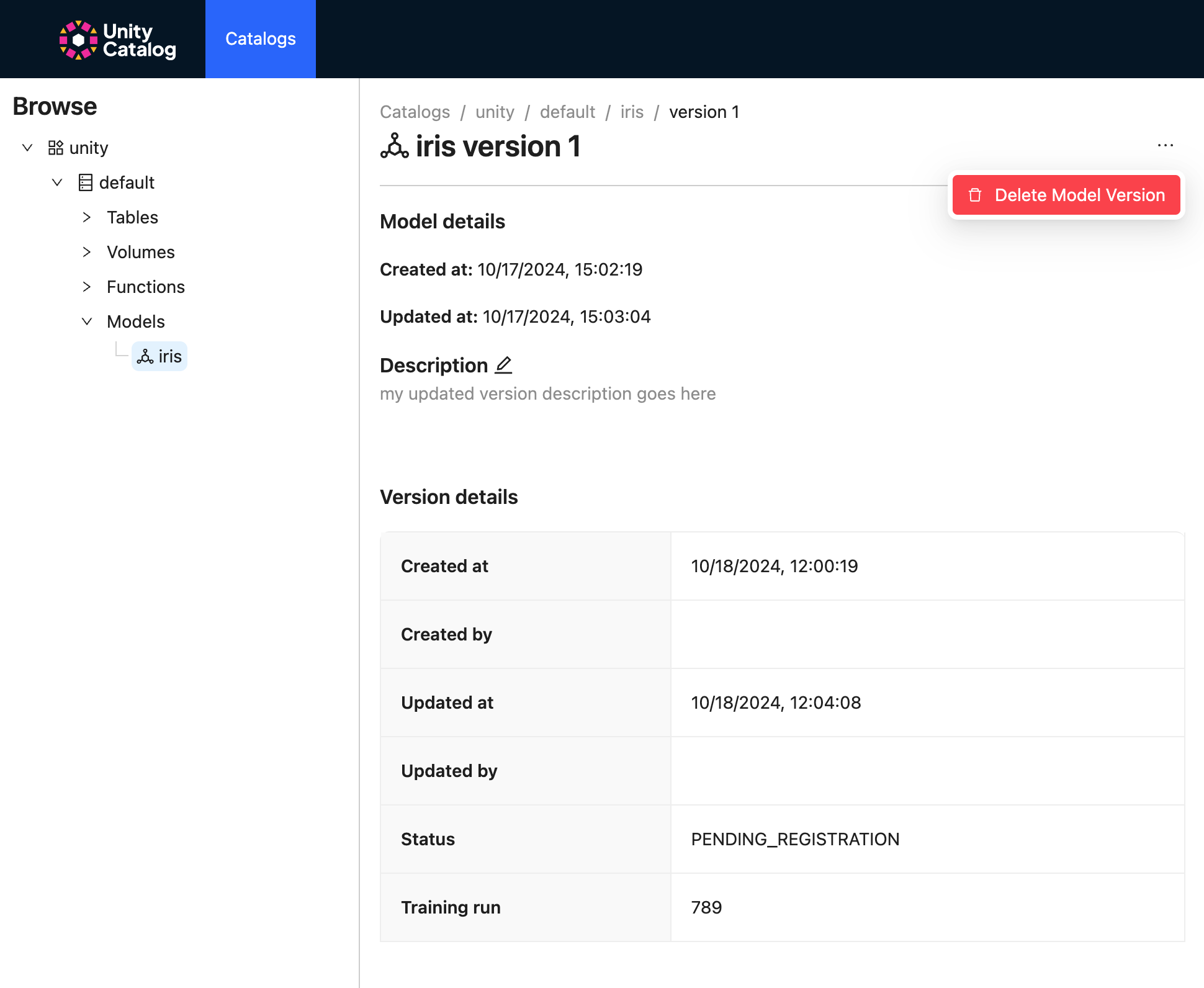

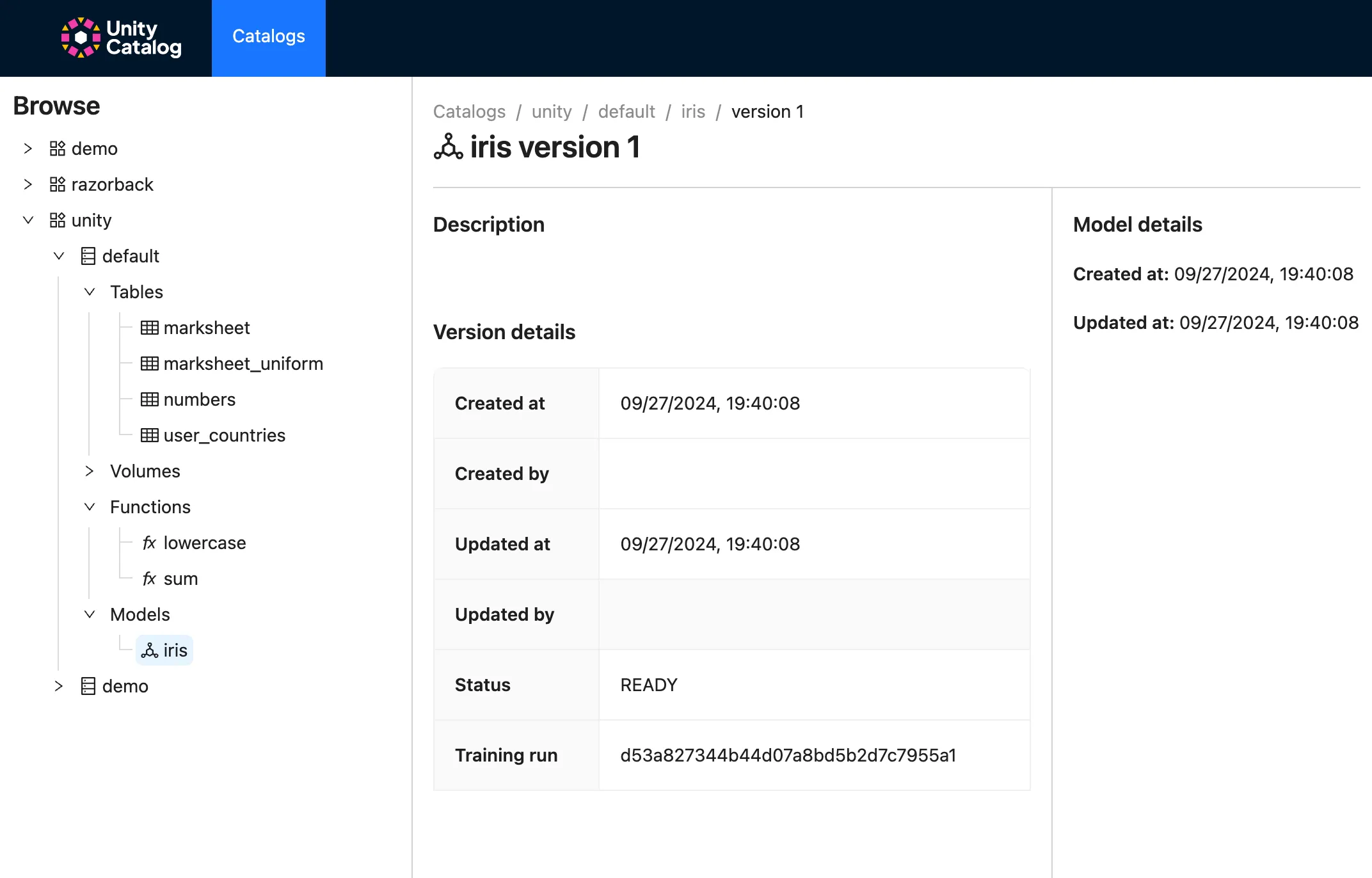

3. View model version metadata

   Click on the model version to view its details.

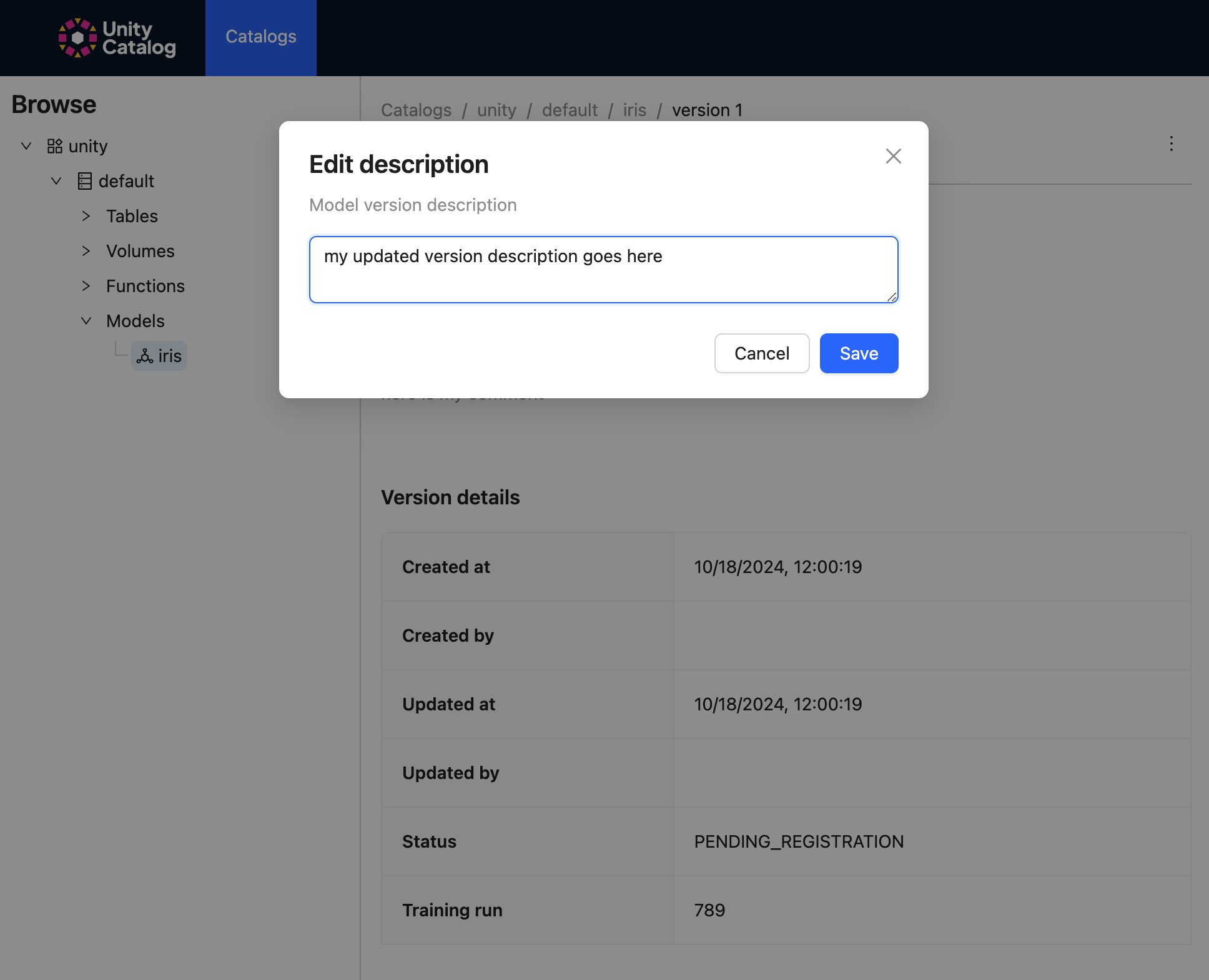

4. Edit model version description

   Click the edit button to change its descripton.

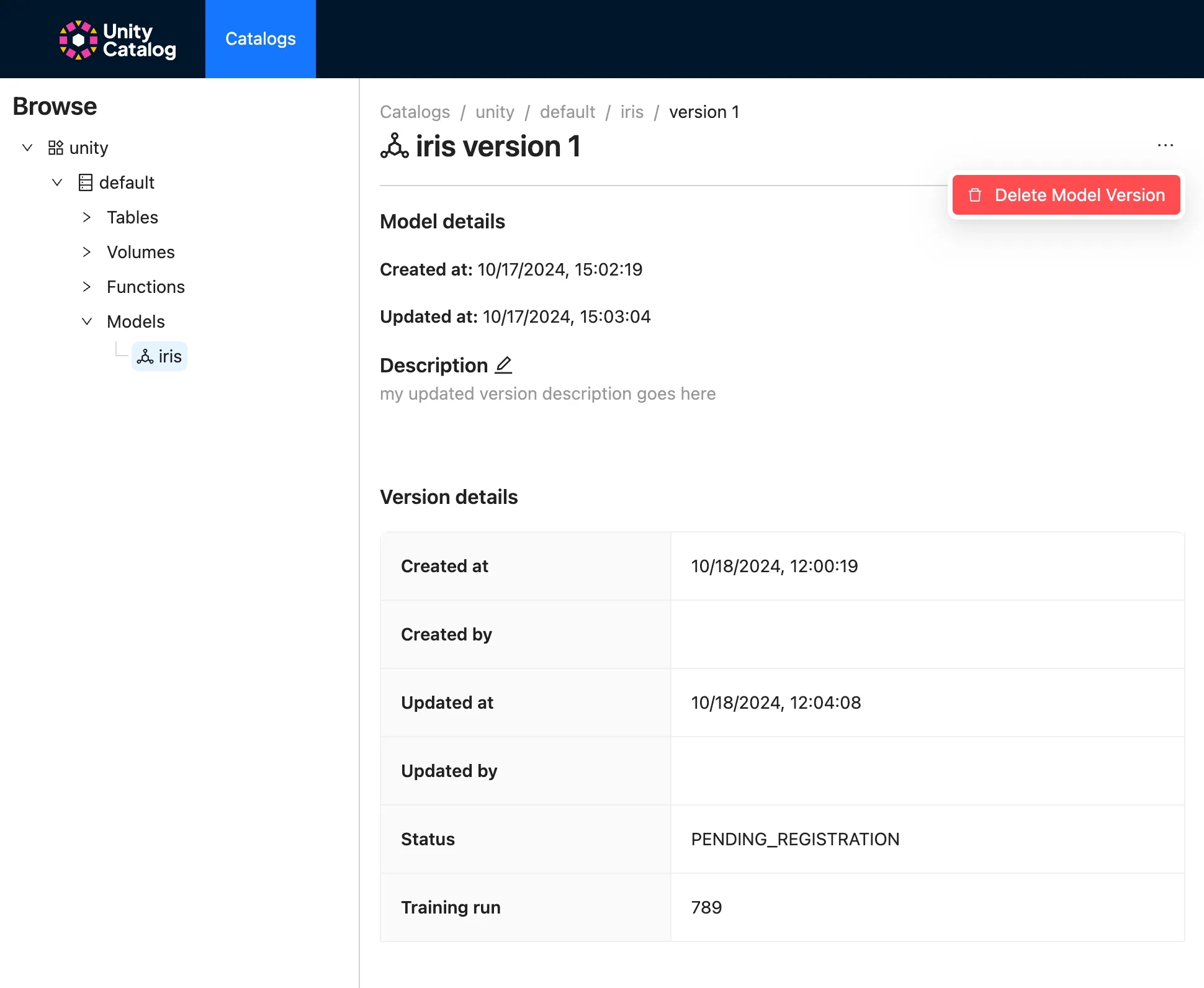

5. Delete a model version

   Click the horizontal three dots to the right to delete your model version.



---

Conclusion

The Unity Catalog UI provides a comprehensive interface for managing data and AI assets. By following the steps outlined in this guide, you can effectively create, describe, and delete catalogs, schemas, tables, volumes, functions, models, and model versions. Ensure that you have the necessary prerequisites installed and follow the provided commands to start the UI locally. This documentation aims to help you navigate and utilize the Unity Catalog UI efficiently.
